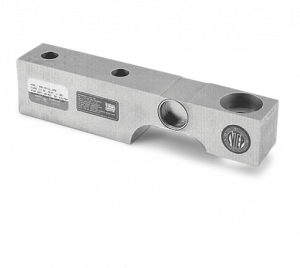

Rugged and precise, this single-ended beam offers welded seal protection and stainless steel construction. Designed for use in the most hostile environments. Applications include platform scales, materials testing and process weighing. NTEP Certified capacities range from 1,000 to 10,000 lb.

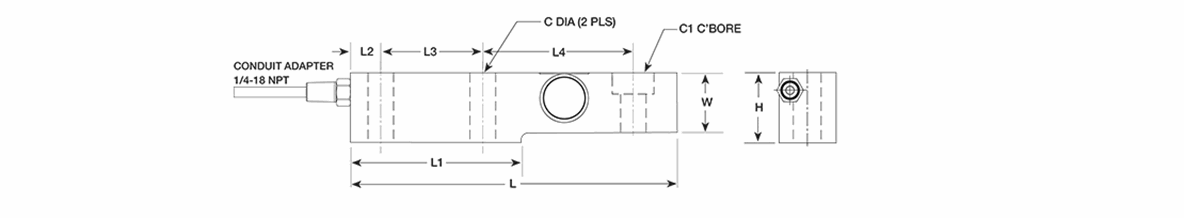

| Rated Capacity | C | W | C1 | H | L | L1 | L2 | L3 | L4 | CONDUIT ADAPTER |
|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||||
| 1,000 to 5,000 | 0.53 | 1.44 | 1.19 × 0.56 DP | 1.88 | 8.00 | 4.00 | 0.75 | 2.50 | 3.87 | 1/4-18NPT |
| 10,000 | 0.88 | 1.88 | 1.63 × 0.62 DP | 2.75 | 9.25 | 4.62 | 0.81 | 2.62 | 4.87 | 1/4-18NPT |
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Combined Error: Non-repeatability: Insulation Resistance: Deflection at Capacity: |
Cable Length: 15 ft Cable Color Code: Warranty: Approvals: |
