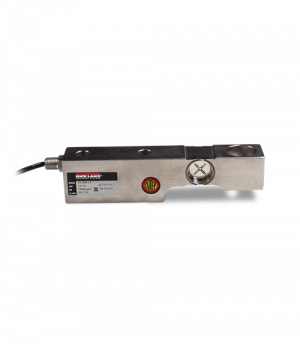

Rugged and precise single-ended beam offers welded-seal protection and stainless steel construction. Designed for use in the most hostile environments. Applications include platform scales, materials testing and process weighing. Capacities range from 1,000 to 10,000 lb. Complete with 15 ft of load cell cable.

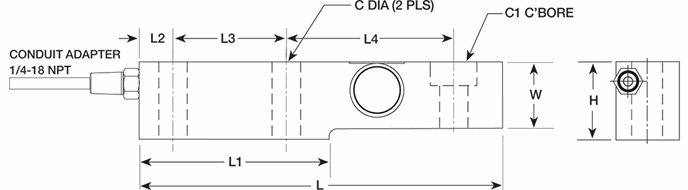

| Rated Capacity | C | C1 | H | L | L1 | L2 | L3 | L4 | W |
|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||
| 1,000 to 5,000 | 0.53 | 0.68 thru C’Bore 1.19 × 0.47 DP | 1.88 | 8.00 | 4.00 | 0.75 | 2.50 | 3.88 | 1.44 |
| 10,000 | 0.88 | 1.00 thru C’Bore 1.63 × 0.62 DP | 2.75 | 9.25 | 4.62 | 0.81 | 2.63 | 4.88 | 1.88 |
| Full Scale Output: 2.0 mV/V Bridge Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Combined Error: Non-repeatability: Insulation Resistance: |
Cable Length: 15 ft Cable Diameter: Cable Color Code: Warranty: Approvals: |
