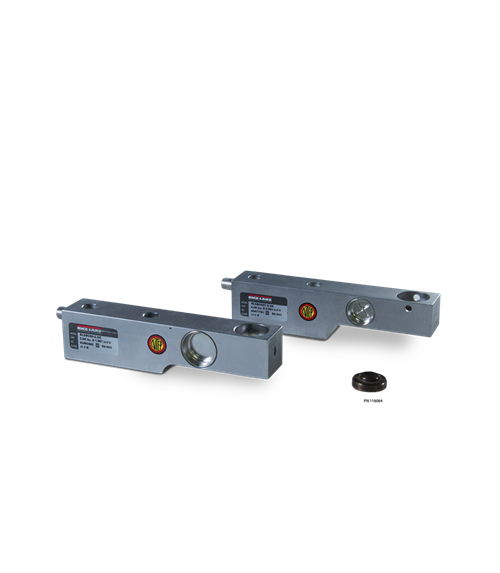

Interchangeable with Cardinal® SB2500. Stainless steel construction with welded seal. NTEP Certified capacity of 2,500 lb to 10,000 lb available. Comes complete with 15 ft or 20 ft of load cell cable.

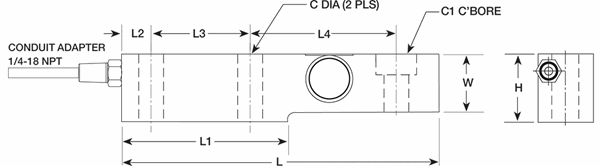

| Rated Capacity | C | C1 | H | L | L1 | L2 | L3 | L4 | T | W |
|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||||
| 2,500 | 0.53 | 1.20 × 0.75 DP | 1.93 | 8.00 | 4.00 | 0.75 | 2.50 | 3.88 | 3/4-16 UNF | 1.25 |
| 5,000 | 0.53 | 1.20 × 0.75 DP | 1.93 | 8.00 | 4.00 | 0.75 | 2.50 | 3.88 | 3/4-16 UNF | 1.45 |
| 10,000 | — | 1.20 × 0.75 DP | 2.46 | 9.00 | 4.00 | 0.75 | 2.00 | 5.25 | — | 1.62 |
| Full Scale Output: 2.0 mV/V Bridge Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Combined Error: Non-repeatability: Insulation Resistance: |
Cable Length: 15 ft – pn 34482 20 ft Cable Diameter: Cable Color Code: Warranty: Approvals: |
