RLHTO Stainless Steel Single-Ended Beam Load Cell

Low profile, hermetic sealing and high accuracy makes the RLHTO suitable for low-profile platforms, pallet truck weighers, tanks and silos.

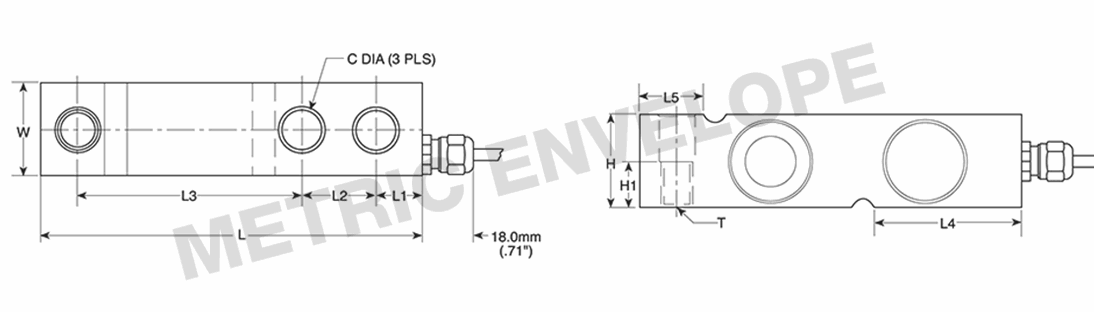

Rated Capacity	C	H	H1	L	L1	L2	L3	L4	L5	T	W
kg/mm
500 to 2,000	13.5	32.0	16.0	130.0	15.8	25.4	76.2	50.5	23.5	M12 × 1.75	32.0
5,000	20.5	48.0	—	171.5	19.0	38.1	95.3	70.0	37.0	—	36.5

Description

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
380 (± 10) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP66/68

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% applied load

Insulation Resistance:
2,000 megohm

Deflection at Capacity:
0.4 mm

Cable Length:
5 m

Cable Diameter:
0.220 in polyurethane jacket

Cable Color Code:
Blue +Excitation
Black –Excitation
White +Signal
Red – Signal
Green +Sense
Grey –Sense

Warranty:
Two-year limited

Approvals:
cFMus
