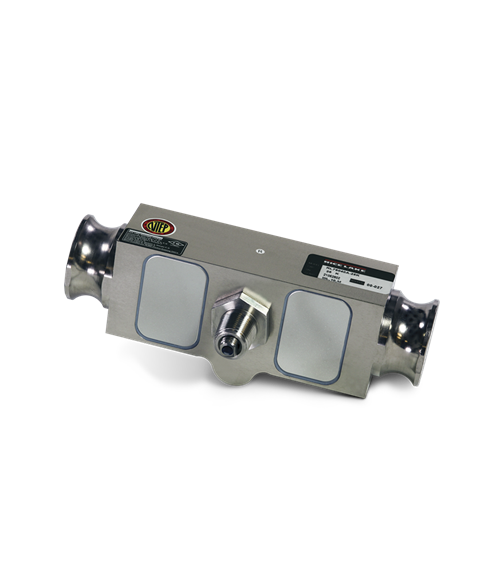

Double-ended beam load cell. Nickel plated and environmentally sealed with stainless steel plates. Designed for center mounting and double link loading, compatible with Unilink/Translink suspension up to 75,000 lb. Capacities range from 25,000 to 125,000 lb. Complete with 35 ft of load cell cable. Optional 40 ft or 50 ft cable available with some capacities.

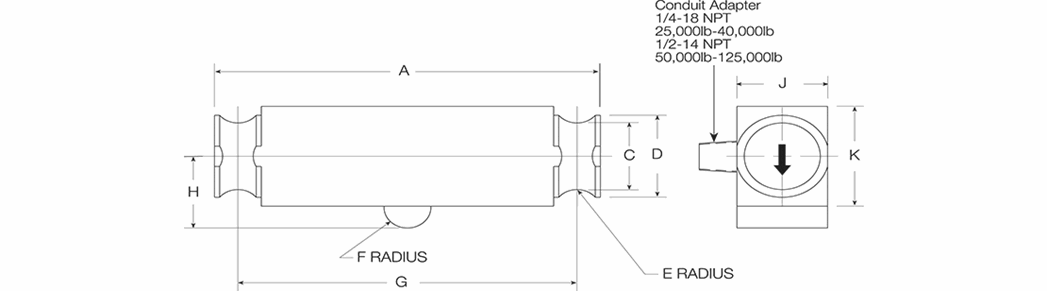

| Rated Capacity | A | C | D | E | F | G | H | J | K |
|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||
| 25,000 to 60,000 SE | 8.25 | 1.63 | 2.00 | 0.50 | 0.50 | 7.25 | 1.75 | 1.94 | 2.44 |
| 50,000 LE to 75,000 | 11.50 | 1.70 | 2.20 | 0.75 | 1.00 | 10.00 | 2.00 | 1.94 | 2.94 |
| 100,000 to 125,000 | 14.50 | 2.44 | 3.20 | 1.00 | 1.50 | 12.50 | 2.75 | 2.90 | 3.86 |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: |
Cable Diameter: 25,000 lb: 0.200 in 40,000 to 75,000 lb: 0.305 in polyurethane jacket Cable Coloring Code: Warranty: Approvals: |
