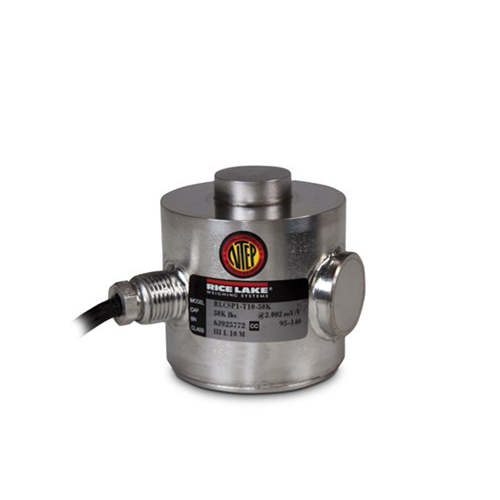

Welded-seal, stainless steel canister cell designed for vehicle and process applications. High capacity load cell is built for reliability, durability and extreme precision. Ideal for applications where optimal precision and durability are needed. Capacities range from 25,000 lb to 200,000 lb. Complete with 35 ft of load cell cable.
| Rated Capacity | A | B | D | F | G | H | L-DEPTH |
|---|---|---|---|---|---|---|---|
| lb/in | |||||||
| 25,000 to 50,000 | 3.00 | 3.25 | 6.00 | 0.40 | 1.25 | 1/2-20 UNF | 0.31 |
| 100,000 | 4.00 | 5.00 | 6.00 | 0.51 | 2.31 | 3/4-16 UNF | 0.56 |
| 200,000 | 6.00 | 7.25 | 17.00 | 1.04 | 3.13 | 3/4-16 UNF | 0.75 |
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Rated Excitation: Combined Error: Non-repeatability: Insulation Resistance: Deflection at Capacity: |
Cable Length: 35 ft 80 ft Cable Diameter: Cable Color Code: Warranty: Approvals: |
