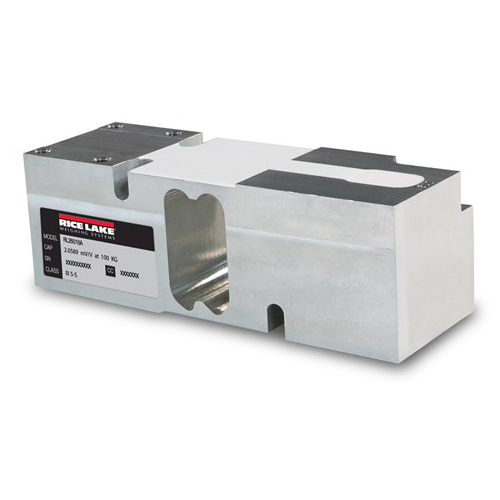

RL26018A Aluminum Single Point Load Cell

Ideal for bench scales. Comes in capacities from 50 kg to 635 kg. NTEP and FM approved and is environmentally sealed to IP67. Complete with 10 ft of cable.

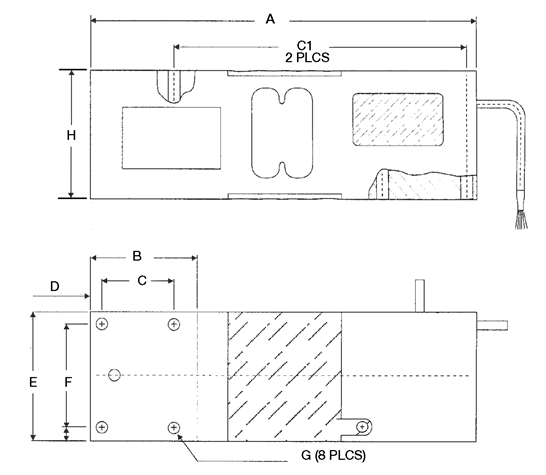

Rated Capacity	A	B	C	C1	D	E	F	G	H
kg/mm
50 to 635	188.0	52.0	35.0	142.0	5.5	63.5	50.0	5/16-18 UNC	62.3

Description

Full Scale Output:
2.0 mV/V nominalOutput Resistance:
350 (± 3) ohm

Input Resistance:
415 (± 15) ohm

Material/Finish:
Anodized aluminum

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67Safe Overload:
150% of full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Insulation Resistance:
>5,000 megohm

Combined Error:
0.02% full scale

Deflection:
0.3 to 0.5 mm

Cable Length:
10 ftCable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal
Blue +Sense
Yellow -Sense

Warranty:
Two-year limited

Approvals:
cFMus
NTEP 18-108
