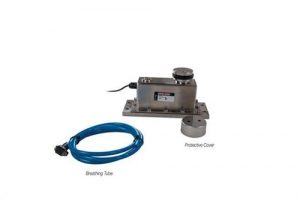

A Rice Lake fluid dampened load cell. The stainless steel housing and standard breather tube provide excellent protection in most applications. Available from 2 kg to 50 kg capacities. NTEP Certified and FM approved.
| Rated Capacity | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg/mm | ||||||||||||||
| 2 to 50 | 50 dia | 115.0 | 86.5 | 12.0 | 9.0 | 220.0 | 200.0 | 148.0 | 80.0 | 54.0 | 40.0 | 25.0 | 60.0 | 1/4-20 UNC |
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Environmentally sealed, IP68 Safe Overload: Rated Excitation: Combined Error: Insulation Resistance: |
Cable Length: 5 m Cable Color Code: Warranty: Approvals: |
