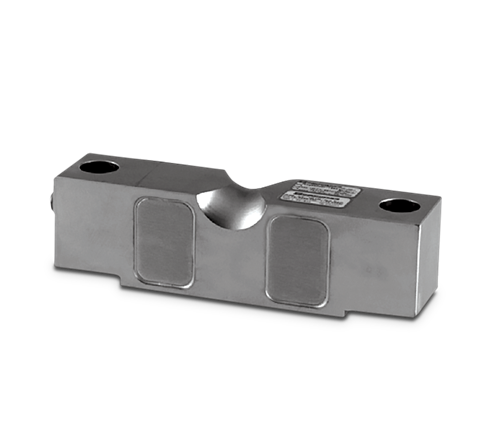

Nickel plated and environmentally protected with stainless steel side plates. Designed for center link loading and compatibility with the MVS or similar suspension systems up to 75,000 lb. NTEP Certified capacities range from 20,000 to 125,000 lb; non-NTEP Certified capacity of 10,000 lb. Complete with 35 ft of load cell cable.

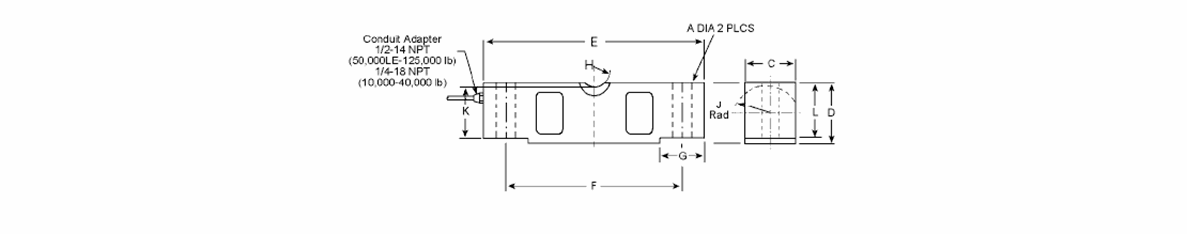

| Rated Capacity | A | C | D | E | F | G | H | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||||
| 10,000 to 25,000 | 0.68 | 1.69 | 1.94 | 7.75 | 6.50 | 1.38 | 0.75 | 0.90 | 1.63 | 1.70 |
| 40,000 to 50,000 SE | 0.81 | 1.94 | 2.44 | 10.25 | 8.50 | 1.93 | 1.00 | 1.12 | 2.00 | 2.10 |
| 50,000 LE to 75,000 | 1.06 | 2.44 | 2.94 | 10.25 | 8.50 | 1.93 | 1.00 | 1.37 | 2.54 | 2.65 |
| 100,000 to 125,000 | 1.62 | 2.90 | 3.86 | 15.25 | 12.75 | 3.13 | 1.50 | 1.80 | 3.30 | 3.43 |
SE=small envelope; LE=large envelope
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: |
Cable Diameter: 10,000 to 25,000 lb: 0.200 in 40,000 to 125,000 lb: 0.305 in polyurethane jacket Cable Coloring: Warranty: Approvals: |
