The Vishay Sensortronics 65058S is a double-ended beam specifically designed for harsh environment vehicle weighing applications. This stainless steel, welded-seal load cell is an ideal substitute for traditional alloy steel, nickel plated units where corrosive or washdown conditions exist. This model is compatible with both the MVS and TSA mounts, and is available in capacities ranging from 20,000 to 125,000 lb. Each unit is provided with a standard 35 ft of load cell cable.

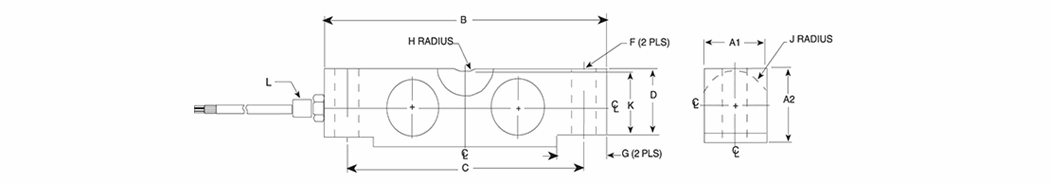

| Rated Capacity | A1 | A2 | B | C | D | F | G | H | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||||
| 20,000 to 25,000 | 1.69 | 1.94 | 7.75 | 6.50 | 1.70 | 0.68 | 1.38 | 0.75 | 0.90 | 1.63 | 1/4-18 NPT |
| 40,000 | 1.94 | 2.44 | 10.25 | 8.50 | 2.10 | 0.81 | 1.93 | 1.00 | 1.12 | 2.00 | 1/4-18 NPT |
| 50,000 to 75,000 | 2.44 | 2.94 | 10.25 | 8.50 | 2.65 | 1.06 | 1.93 | 1.00 | 1.37 | 2.54 | 1/2-14 NPT |
| 100,000 | 2.44 | 3.44 | 10.25 | 8.50 | 2.65 | 1.06 | 1.93 | 1.00 | 1.37 | 2.54 | 1/2-14 NPT |
| 125,000 | 2.90 | 3.86 | 15.25 | 12.75 | 3.43 | 1.62 | 3.13 | 1.50 | 1.80 | 3.30 | 1/2-14 NPT |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Nonlinearity: Hysteresis: Insulation Resistance: Cable Length: |
Cable Diameter: 20,000 to 25,000 lb: 0.200 in 40,000 to 125,000 lb: 0.305 in Polyurethane jacket Cable Coloring: Warranty: Approvals: |
