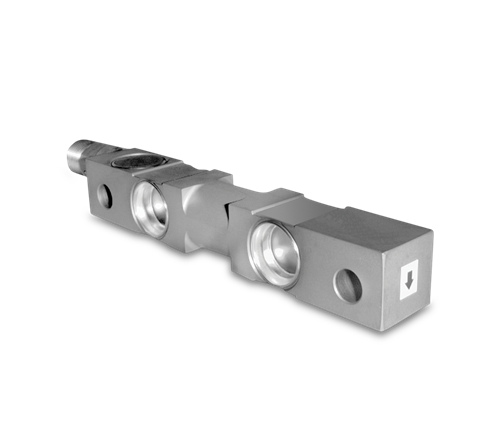

Stainless steel, full hermetic version of the popular 65016 series load cells. Capacities range from 1,000 to 25,000 lb. Complete with 25 ft of load cell cable.

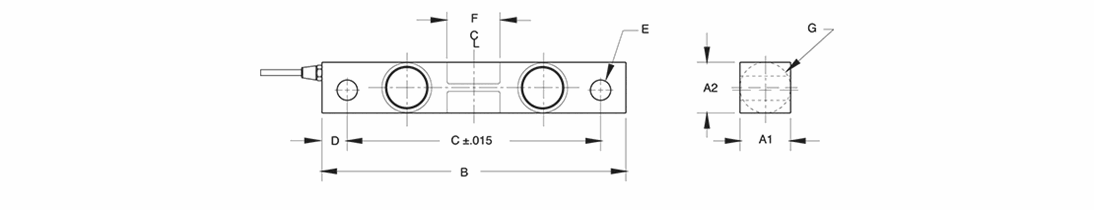

| Rated Capacity | A1 | A2 | B | C | D | E | F | G | CONDUIT ADAPTER |
|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||
| 1,000 to 5,000 | 1.22 | 1.22 | 7.50 | 6.25 | 0.62 | 0.50 | 1.12 | 1.25 | 1/2-14 NPT |
| 10,000 to 25,000 | 1.44 | 1.94 | 8.75 | 7.50 | 0.62 | 0.81 | 1.62 | 1.99 | 1/2-14 NPT |
| Full Scale Output: 3.0 mV/V nominal Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Nonlinearity: Hysteresis: Insulation Resistance: |
Cable Length: 25 ft Cable Diameter: Cable Color Code: Warranty: Approvals: |
