This model is an upgraded version of the Vishay Sensortronics 65040A, and is offered in stainless steel, with welded sealing. The center-supported, double-ended beam design is compatible with Unilink/Translink mounts. The full stainless, welded-seal upgrade makes this model ideal for applications where harsh chemicals and washdown conditions exist. This model is available in capacities ranging from 25,000 to 75,000 lb, and is provided with a standard 35 ft of load cell cable.

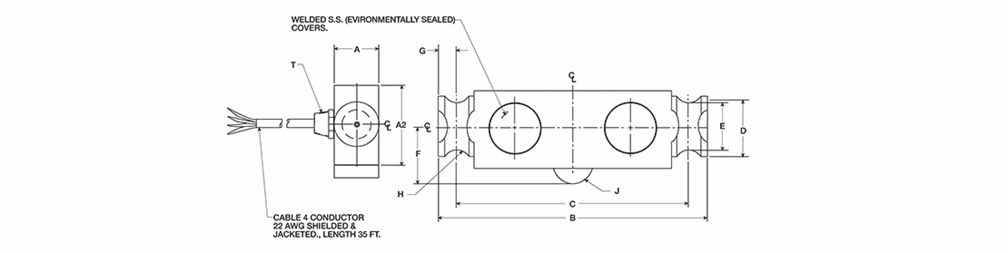

| Rated Capacity | A | A2 | B | C | D | E | F | G | H | J | T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||||
| 25,000 to 40,000 | 1.94 | 2.44 | 8.25 | 7.25 | 2.00 | 1.63 | 1.75 | 0.50 | 0.50 | 0.50 | 1/4-18 NPT |
| 50,000 to 75,000 | 1.94 | 2.94 | 11.50 | 10.00 | 2.20 | 1.70 | 2.00 | 0.75 | 0.75 | 1.00 | 1/4-18 NPT |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Welded-seal, IP68 Safe Overload: Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: |
Cable Length: 35 ft Cable Diameter: Cable Coloring: Warranty: Approvals: |
