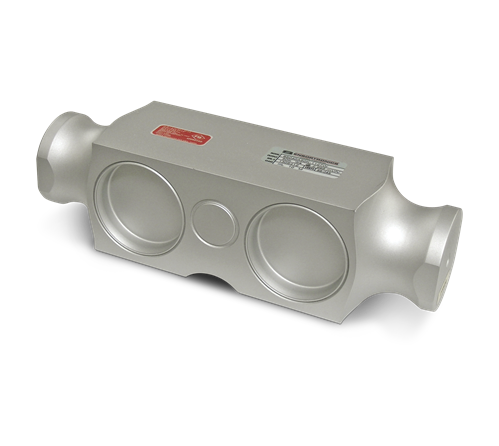

This center-loaded, double-link load cell is made of alloy steel with an epoxy paint finish. It is a replacement for the RL75223 or RTI 5223 load cell, and is NTEP Certified. It comes with 40 ft of cable, and is available in 50,000 lb, 65,000 lb and 100,000 lb capacities.

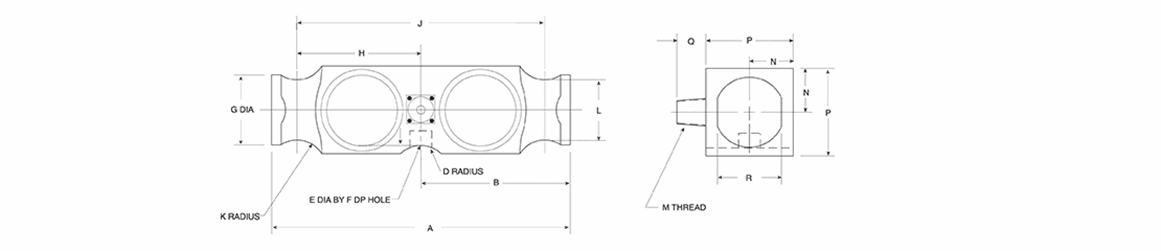

| Rated Capacity | A | B | D | E | F | G | H | J | K | L | M | N | P | Q | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||||||||
| 50,000 to 65,000 | 10.25 | 5.12 | 1.00 | 0.75 | 0.78 | 2.40 | 4.25 | 8.50 | 1.00 | 2.06 | 1/2-14 NPT | 1.50 | 3.00 | 1.03 | 2.20 |
| 100,000 | 10.25 | 5.12 | 1.00 | — | — | 2.40 | 4.25 | 8.50 | 1.00 | 2.06 | 1/2-14 NPT | 1.50 | 3.00 | 1.03 | 2.20 |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Non-repeatability: Combined Error: Insulation Resistance: Deflection at Capacity: |
Cable Length: 40 ft Cable Diameter: Cable Color Code: Warranty: Approvals: |
