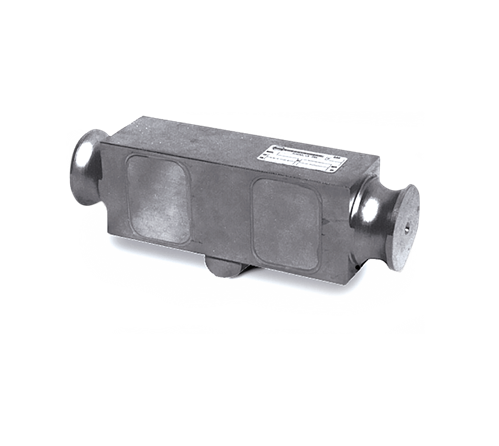

Nickel plated and environmentally protected with stainless steel side plates. Designed for center mounting and double link loading. Capacities range from 25,000 to 125,000 lb. Complete with 35 ft of load cell cable.

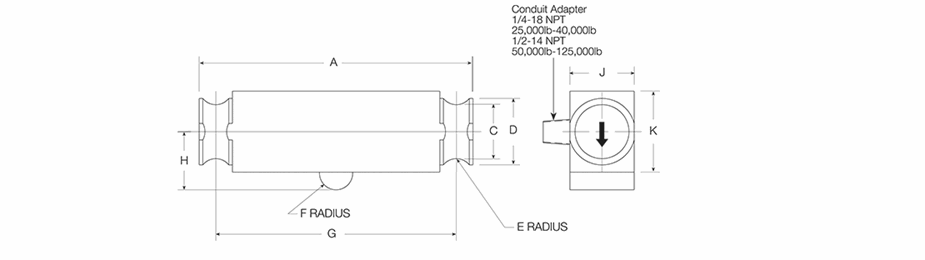

| Rated Capacity | A | C | D | E | F | G | H | J | K |
|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||
| 25,000 to 50,000 SE | 8.25 | 1.63 | 2.00 | 0.50 | 0.50 | 7.25 | 1.75 | 1.94 | 2.44 |
| 50,000 to 75,000 | 11.50 | 1.70 | 2.20 | 0.75 | 1.00 | 10.00 | 2.00 | 1.94 | 2.94 |
| 100,000 to 125,000 | 14.50 | 2.44 | 3.20 | 1.00 | 1.50 | 12.50 | 2.75 | 2.90 | 3.86 |
| Full Scale Output: 3.0mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: |
Cable Diameter: 25,000 lb: 0.200 in 50,000 to 125,000 lb: 0.305 in Polyurethane jacket Cable Coloring: Warranty: Approvals: |
