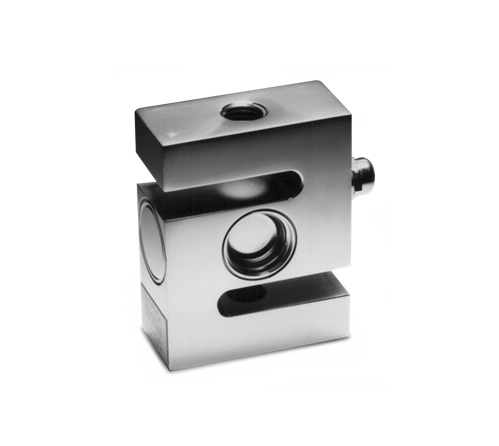

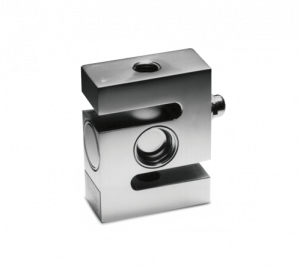

Ideally suited for harsh environments, lever conversions, hopper/tanks, vibratory feeders, general purpose weighing and force measurement applications. The stainless steel, welded cavity design provides protection against water and corrosive materials. Capacities range from 500 to 2,000 kg. Complete with 5 m of load cell cable.

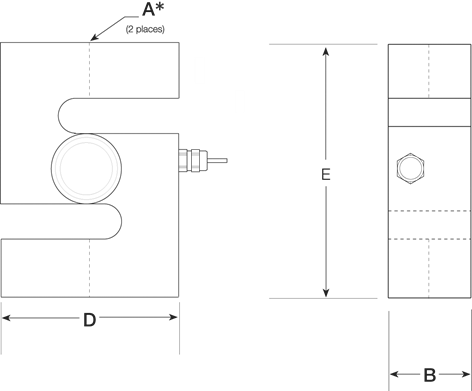

| Rated Capacity | A* | B | D | E |
|---|---|---|---|---|
| kg/mm | ||||
| 500 to 1,000 | 1/2-20 UNF | 33.5 | 73.2 | 94.0 |
| 2,000 | 3/4-16 UNF | 33.5 | 73.2 | 94.0 |
| *Metric threads available | ||||
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Welded-seal, IP68 Safe Overload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: |
Cable Diameter: 0.220 in Polyurethane jacket Cable Color Code: Warranty: Approvals: |
