The 65114 was specially designed to provide the superior protection of stainless steel and hermetic sealing for truck scale applications. This model is built to provide a high degree of accuracy while protecting against the severe conditions that truck scale load cells often endure. The easy installation of “rocker column” type load cells also provides a distinct advantage over traditional market alternatives. Available in two different heights, this product can easily be adapted to existing applications.

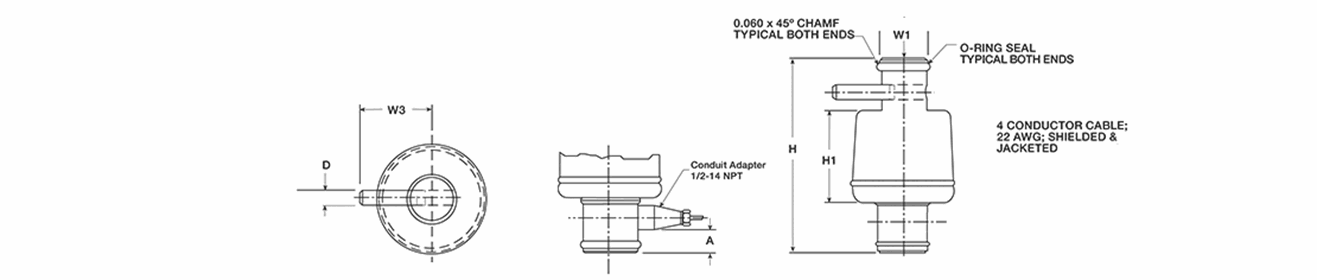

| Rated Capacity | A | D | H | H1 | H2 | W1 | W2 | W3 |
|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||
| 50,000 | 0.62 | 0.38 | 6.00 | 2.82 | 1.59 | 1.46 | 1.46 | 2.5 |
| 50,000LE | 0.62 | 0.38 | 7.56 | 2.82 | 1.59 | 1.46 | 1.46 | 2.5 |
LE=large envelope
| Full Scale Output: 2.0 mV/V nominal Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Hermetically sealed, IP68 Safe Overload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: |
Cable Diameter: 0.305 in Polyurethane jacket Cable Color Code: Warranty: Approvals: |
