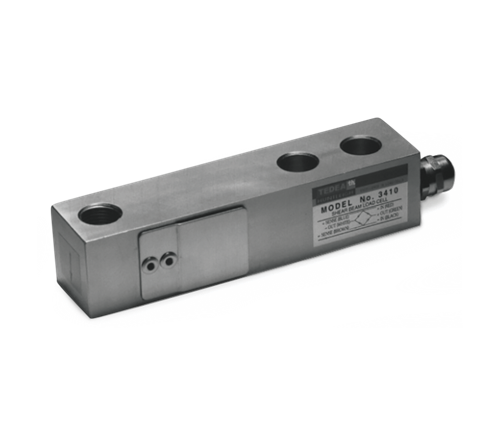

Single-ended beam available in both alloy and stainless steel with NTEP Certification. These products are ideal for low-profile platforms, pallet truck weighers, tanks and silos. Provides stability for more severe weighing applications. Both versions are available in capacities ranging from 1,000 lb to 10,000 lb. A standard 10 ft of load cell cable is provided.

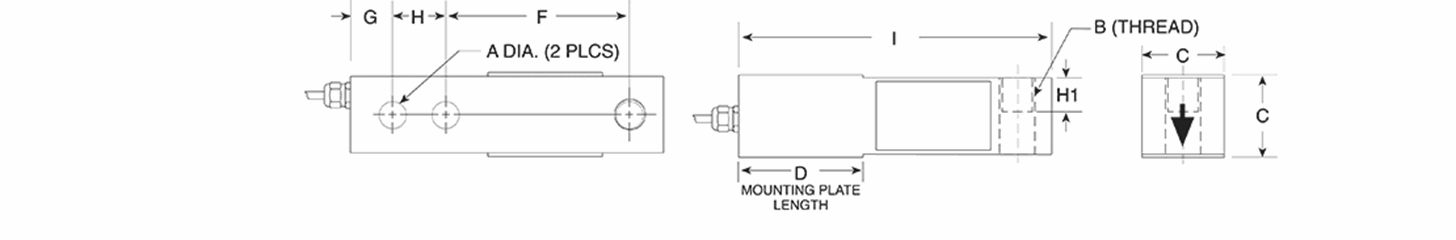

| Rated Capacity | A | B | C | D | F | G | H | H1 | I |
|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||
| 1,000 to 4,000 | 0.53 | 1/2–20 UNF | 1.24 | 2.25 | 3.00 | 0.63 | 1.00 | 0.60 | 5.12 |
| 5,000 to 10,000 | 0.78 | 3/4-16 UNF | 1.49 | 3.00 | 3.75 | 0.75 | 1.50 | 0.75 | 6.75 |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: Cable Length: |
Cable Diameter: 0.200 in PVC jacket Cable Color Code: Warranty: Approvals: |
