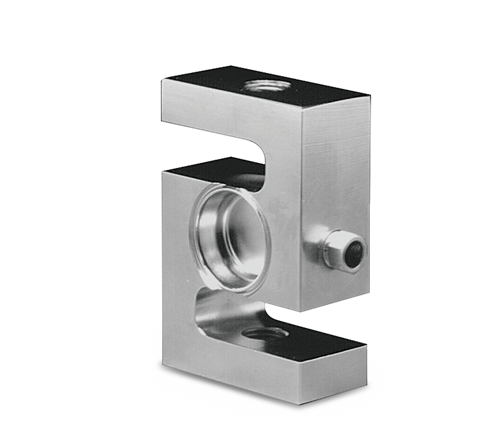

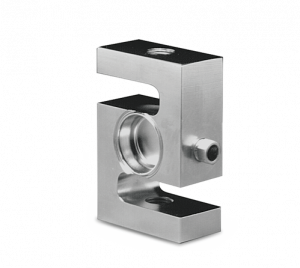

Welded-seal, stainless steel, s-beam load cell designed for compression and tension. Ideal for scale conversions and general-purpose weighing. NTEP Certified in capacities ranging from 500 to 5,000 lb. 10,000 lb is non-NTEP Certified.

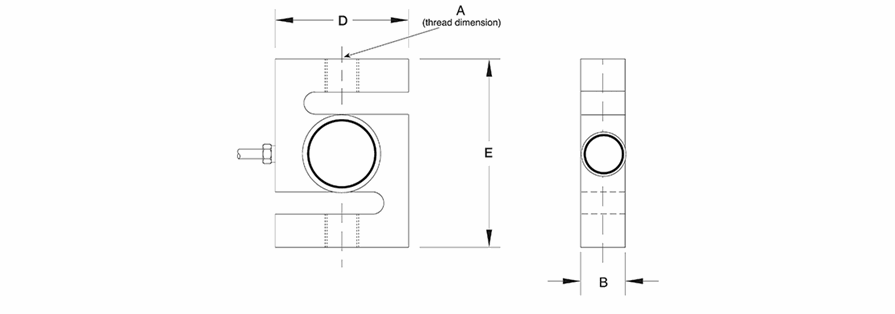

| Rated Capacity | A | B | D | E |
|---|---|---|---|---|
| lb/in | ||||
| 500 to 3,000 | 1/2-20 UNF | 1.00 | 2.00 | 3.00 |
| 5,000 to 10,000 | 3/4-16 UNF | 1.00 | 3.50 | 4.75 |
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Welded-seal, IP68 Safe Overload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: |
Cable Diameter: 0.200 in polyurethane jacket Cable Color Code: Warranty: Approvals: |
