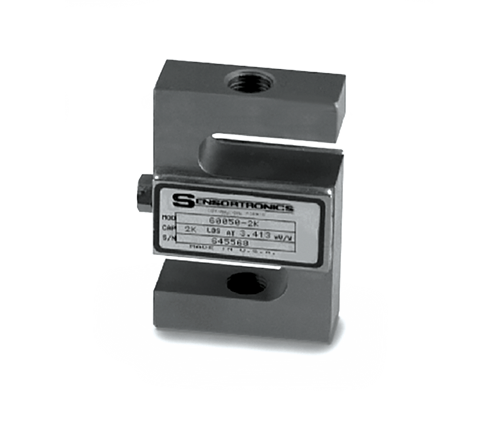

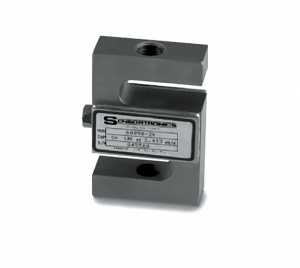

Suitable for single- or multiple-cell applications. Complete with 20 ft of load cell cable and full environmental protection with stainless steel side plates. Stainless steel construction for added corrosion protection. Capacities range from 250 to 20,000 lb. Capacities of 5,000 lb or higher have standardized output for multiple-cell installations.

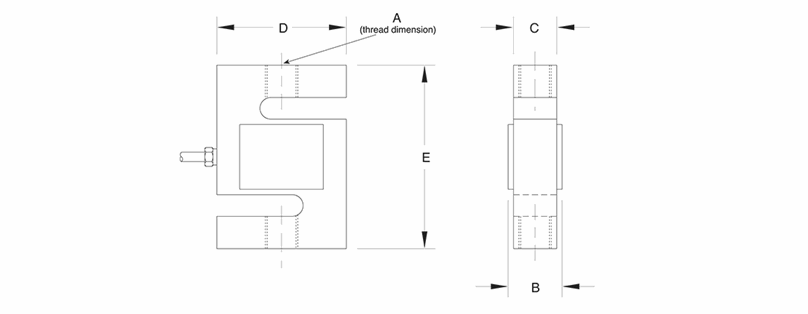

| Rated Capacity | A | B | C | D | E |
|---|---|---|---|---|---|
| lb/in | |||||
| 250 | 3/8-24 UNF | 0.75 | 0.50 | 2.00 | 3.00 |
| 500 to 1,500 | 1/2-20 UNF | 1.00 | 0.75 | 2.00 | 3.00 |
| 2,000 to 3,000 | 1/2-20 UNF | 1.25 | 1.00 | 2.00 | 3.00 |
| 5,000 | 3/4-16 UNF | 1.25 | 1.00 | 3.00 | 4.25 |
| 10,000 | 3/4-16 UNF | 1.25 | 1.00 | 3.50 | 4.75 |
| 15,000 | 1-14 UNS | 1.50 | 1.25 | 4.00 | 5.50 |
| 20,000 | 1 1/4-12 UNF | 2.00 | 1.94 | 5.00 | 7.00 |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Rated Excitation: Nonlinearity: Hysteresis: Insulation Resistance: Cable Length: |
Cable Diameter: 0.200 in Polyurethane jacket Cable Color Code: Warranty: Approvals: |
