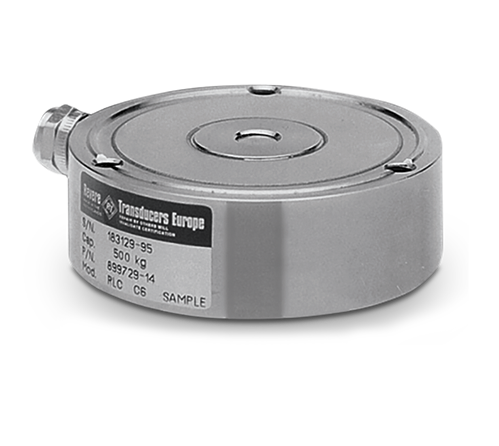

A low profile, high performance ring torsion type load cell in stainless steel. This product is suitable for small and medium platform scales as well as process weighing. Capacities range from 0.25 T to 10 T.

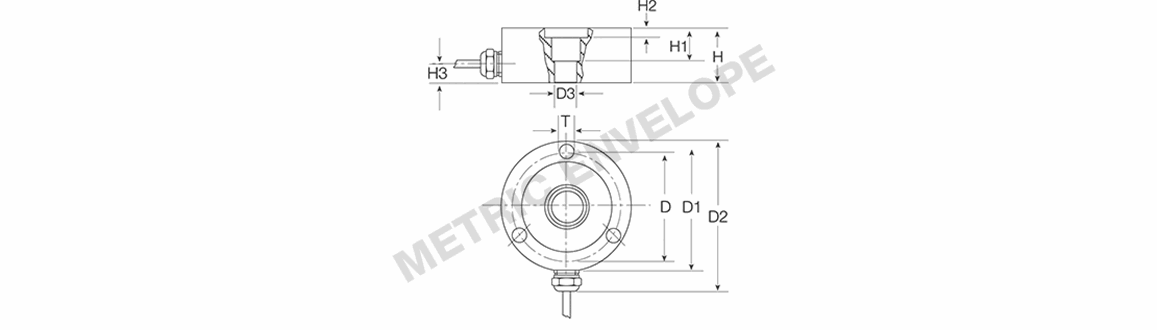

| Rated Capacity | D | D1 | D2 | D3 | H | H1 | H2 | H3 | T |
|---|---|---|---|---|---|---|---|---|---|
| T/in | |||||||||
| 0.25 to 1 | 2.76 | 3.15 | 3.84 | 0.40 | 0.99 | 0.60 | 0.04 | 0.37 | M6 (3 x 120°) |
| 2 to 5 | 2.76 | 3.15 | 3.84 | 0.60 | 1.18 | 0.79 | 0.24 | 0.33 | M6 (3 x 120°) |
| 10 | 3.26 | 3.74 | 4.42 | 0.98 | 1.37 | 0.58 | – | 0.39 | M6 (3 x 120°) |
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Hermetically sealed, IP66/68 Safe Overload: Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: |
Cable Length: 5 m Cable Color Code: Warranty: Approvals: |
