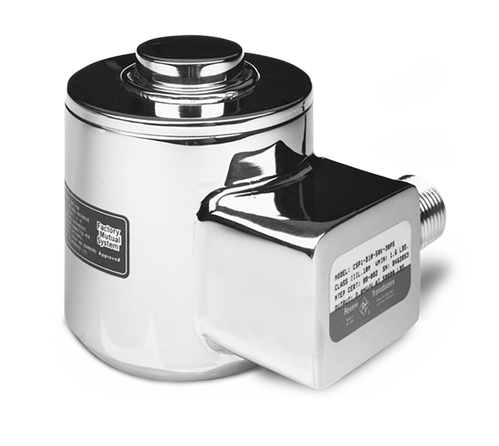

This welded-seal, stainless steel canister cell is designed for compression service only. High-capacity transducers are built for reliability, durability and extreme precision. Ideal for applications where ultimate precision is needed. Single or dual bridges available for 10,000 lb only. NTEP Certified capacities range from 25,000 lb to 200,000 lb; non-NTEP Certified capacities are 10,000 lb and 500,000 lb. Complete with 30 ft of load cell cable.

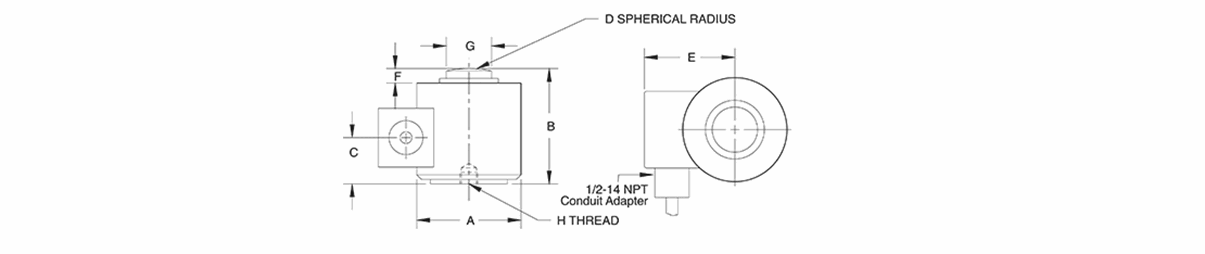

| Rated Capacity | A | B | C | D | E | F | G | H | DEPTH of H |
|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||
| 10,000 to 50,000 | 2.88 | 3.25 | 1.28 | 6.00 | 2.51 | 0.40 | 1.25 | 1/2-20 UNF | 0.38 |
| 100,000 | 4.12 | 5.00 | 2.15 | 6.00 | 3.39 | 0.51 | 2.31 | 3/4-16 UNF | 0.56 |
| 200,000 to 300,000 | 6.00 | 7.25 | 3.63 | 17.00 | 4.26 | 1.04 | 3.13 | 3/4-16 UNF | 0.75 |
| 500,000 | 6.50 | 9.00 | 4.34 | 17.00 | 4.59 | 0.56 | 3.69 | 3/4-16 UNF | 0.75 |
| Full Scale Output: 2 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Rated Excitation: Combined Error: Non-repeatability: Insulation Resistance: Deflection at Capacity: |
Cable Length: 30 ft 60 ft Cable Diameter: Cable Color Code: Warranty: Approvals: |
