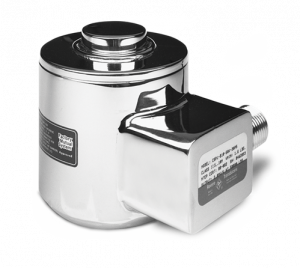

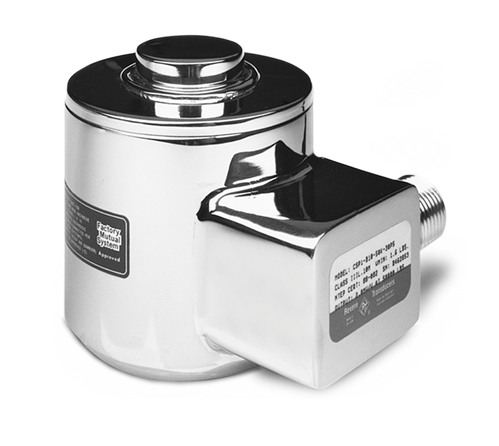

This welded-seal, canister cell is designed for compression service only. High-capacity transducers are built for reliability, durability and extreme precision. Compression Precision (CP) cells are recommended for most industrial applications. Single or dual bridges available for 10,000 to 500,000 lb capacities. Complete with 30 ft of load cell cable.

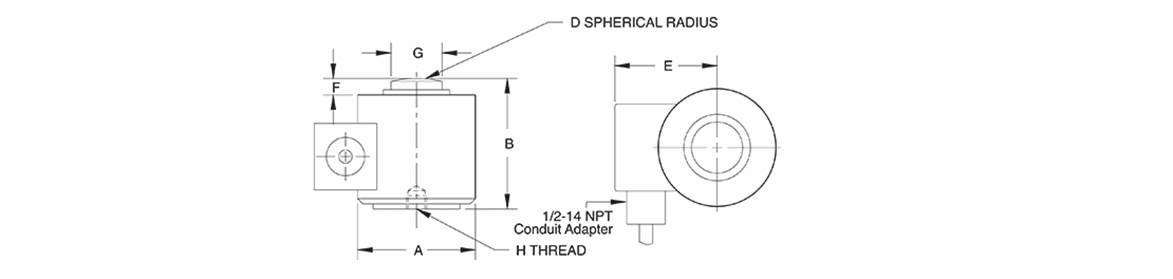

| Rated Capacity | A | B | D | E | F | G | H | DEPTH of H |
|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||
| 10,000 to 50,000 | 2.48 | 3.25 | 6.00 | 3.30 | 0.40 | 1.25 | 1/2-20 UNF | 0.31 |
| 100,000 | 4.12 | 5.00 | 6.00 | 3.50 | 0.51 | 2.31 | 3/4-16 UNF | 0.56 |
| 200,000 to 300,000 | 6.00 | 7.25 | 17.00 | 4.60 | 1.04 | 3.13 | 3/4-16 UNF | 0.75 |
| 500,000 | 6.50 | 9.00 | 17.00 | 4.80 | 0.56 | 3.69 | 3/4-16 UNF | 0.75 |
| Full Scale Output: 1.75 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Rated Excitation: Combined Error: Non-repeatability: Insulation Resistance: Deflection at Capacity: |
Cable Length: 30 ft Cable Diameter: Cable Color Code: Warranty: Approvals: |
