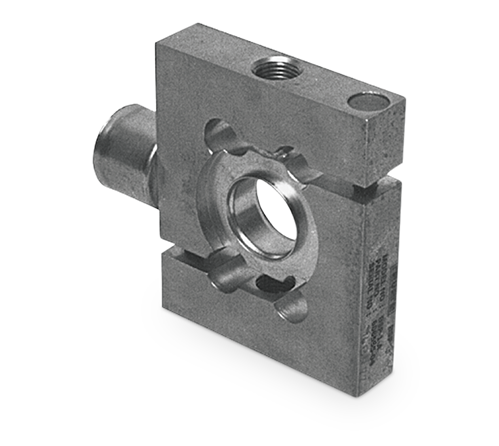

VPG Revere BSP Stainless Steel S-Beam Load Cell

Welded-seal stainless steel s-beam load cell designed for compression and tension. Ideal for scale conversions and general-purpose weighing. NTEP Certified capacities range from 100 to 5,000 lb; non-NTEP Certified capacity of 10,000 lb. Complete with 30 ft of load cell cable.

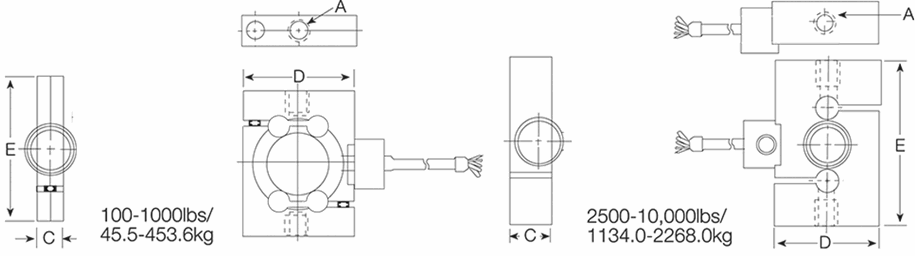

Rated Capacity A C D E
lb/in
100 to 250 3/8-24 UNF 0.94 2.48 3.32
500 1/2-20 UNF 0.71 2.44 3.50
1,000 1/2-20 UNF 0.71 2.44 3.50
2,500 1/2-20 UNF 0.95 2.44 3.75
5,000 to 10,000 1-14 UNS 1.44 2.44 4.75

Description

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (± 3.5) ohm

Input Resistance:
350 (± 3.5) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.03% full scale

Non Repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
30 ft

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal

Warranty:
One-year limited

Approvals:
cFMus
NTEP
