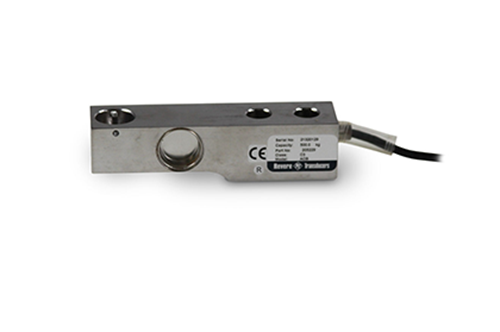

VPG Revere ACB Stainless Steel Single-Ended Beam Load Cell

An hermetically sealed, stainless steel, single-ended shear beam load cell utilizing a 1,000 ohm bridge. Capacities range from 500 kg to 5,000 kg.

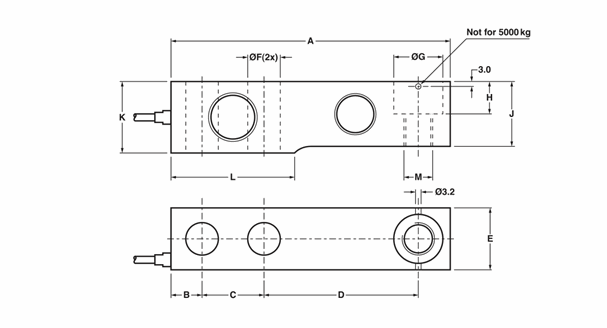

Rated Capacity	A	B	C	D	E	F	G	H	J	K	L	M
kg/mm
500	130.0	15.5	25.4	76.2	31.8	13.0	20.5	14.2	26.0	31.8	57.1	M12
1,000	130.0	15.5	25.4	76.2	31.8	13.0	20.5	14.2	28.0	31.8	57.1	M12
2,000	130.0	15.5	25.4	76.2	31.8	13.0	20.5	14.2	32.0	35.8	57.1	M12
5,000	172.0	19.1	38.1	95.3	38.0	20.5	30.2	20.0	40.0	44.0	76.2	M20

Description

Full Scale Output:
2mV/V

Output Resistance:
1,000 (± 10) ohm

Input Resistance:
1,000 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP68

Safe Overload:
150% full scale

Rated Excitation:
5 to 12 VDC

Combined Error:
0.02%

Insulation Resistance:
5,000 megohm

Cable Length:
500 to 1,000 kg: 3 m
2,000 to 5,000 kg: 6 m

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow +Sense
Blue –Sense

Warranty:
One-year limited

Approvals:
cFMus
