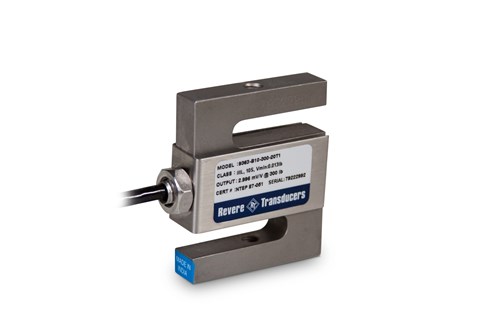

A stainless steel s-beam type load cell with trimmed outputs for easy installation. Compact and economical design, ideally suited for scale conversions and general-purpose weighing. NTEP Certified capacities range from 100 lb to 10,000 lb; non-NTEP Certified capacity of 50 lb, 15,000 lb and 20,000 lb. Complete with 20 ft of load cell cable. Trimmed outputs makes installation easy.

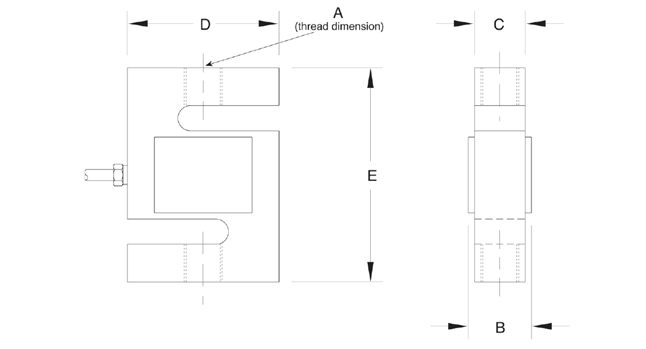

| Rated Capacity | A | B | C | D | E |
|---|---|---|---|---|---|
| lb/in | |||||
| 50 to 300 | 1/4-28 UNF | 0.65 | 0.46 | 2.00 | 2.40 |
| 500 to 1,500 | 1/2-20 UNF | 0.90 | 0.71 | 2.00 | 2.40 |
| 2,000 to 2,500 | 1/2-20 UNF | 1.13 | 0.96 | 2.00 | 2.40 |
| 3,000 | 1/2-20 UNF | 1.13 | 0.96 | 3.00 | 3.90 |
| 5,000 | 3/4-16 UNF | 1.15 | 0.96 | 3.00 | 3.90 |
| 10,000 | 3/4-16 UNF | 1.40 | 1.21 | 2.94 | 3.90 |
| 15,000 | 1-1/4 UNS | 1.63 | 1.46 | 3.44 | 5.50 |
| 20,000 | 1-1/4-12 UNF | 1.88 | 1.68 | 4.44 | 7.00 |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Environmentally sealed, IP67 Safe Overload: Rated Excitation: Combined Error: Non-repeatability: Insulation Resistance: |
Cable Length: 20 ft Cable Color Code: Warranty: Approvals: |
