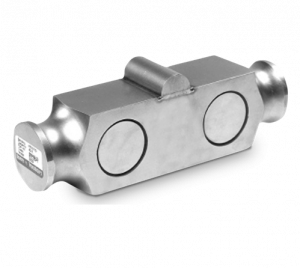

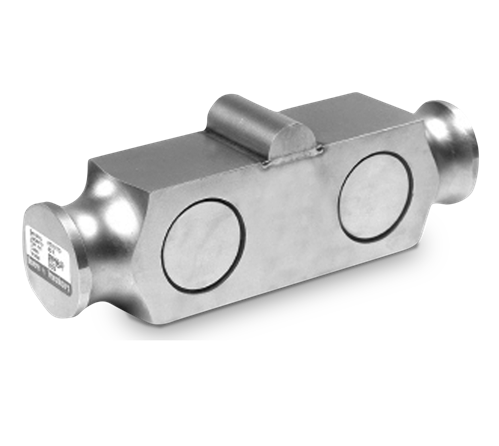

Very high performance end-loaded, center-supported double-ended beam designed for low-profile track and truck scales in harsh environments. Parallel link loading provides free movement in all horizontal directions with virtually no friction. Available in 50,000 lb and 60,000 lb with 30 ft of load cell cable.

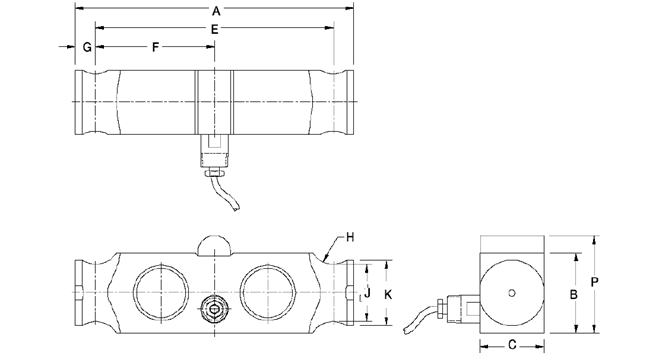

| Rated Capacity | A | B | C | E | F | G | H | J | K | P |
|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||||
| 50,000 to 60,000 | 8.50 | 2.45 | 1.95 | 7.25 | 3.63 | 0.63 | 0.75 | 1.75 | 2.00 | 3.00 |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Non-repeatability: Combined Error: Insulation Resistance: |
Cable Length: 30 ft Cable Diameter: Cable Color Code: Warranty: Approvals: |
