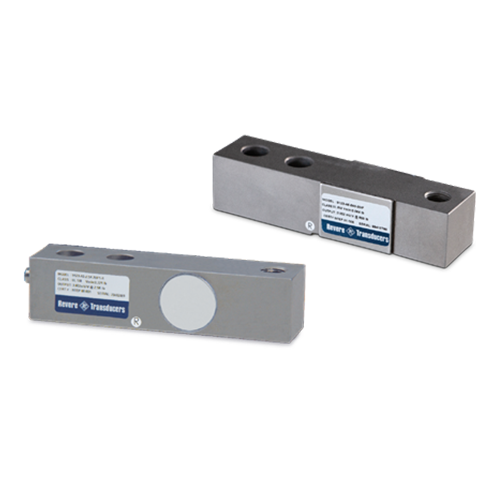

VPG Revere 9123 Stainless Steel Single-Ended Beam Load Cell

Single-ended stainless steel beam designed for low-profile scales and process weighing in both Legal for Trade and non-Legal for Trade applications. Capacities range from 250 lb to 20,000 lb. Complete with 20 ft of load cell cable.

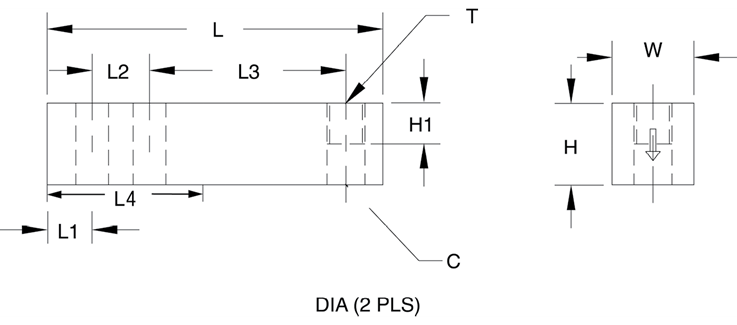

Rated Capacity C H H1 L L1 L2 L3 L4 T W
lb/in
250 to 5,000 SE 0.53 1.23 0.67 5.12 0.62 1.00 3.00 2.25 1/2-20 UNF 1.23
5,000 to 15,000 0.78 1.45 0.70 6.75 0.75 1.50 3.75 3.12 3/4-16 UNF 1.50
20,000 1.06 1.95 0.98 8.75 1.00 2.00 4.75 4.00 1-12 UNF 1.95
250 lb to 2,000 lb has an integral foot

Description

Full Scale Output:
3.0 mV/VOutput Resistance:
350 (± 3.5) ohm

Input Resistance:
350 (± 3.5) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
0 °F to 150 °F (-18 °C to 65 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohmCable Length:
20 ft

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited

Approvals:
cFMus
NTEP
