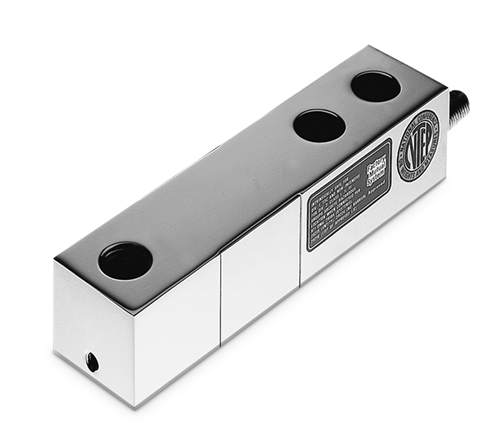

VPG Revere 5123 Alloy Steel Single-Ended Beam Load Cell

Low-cost, high performance, single-ended beam designed for low-profile scales and process weighing in both Legal for Trade and non-Legal for Trade applications. Capacities range from 1,000 to 10,000 lb. Complete with 20 ft of load cell cable.

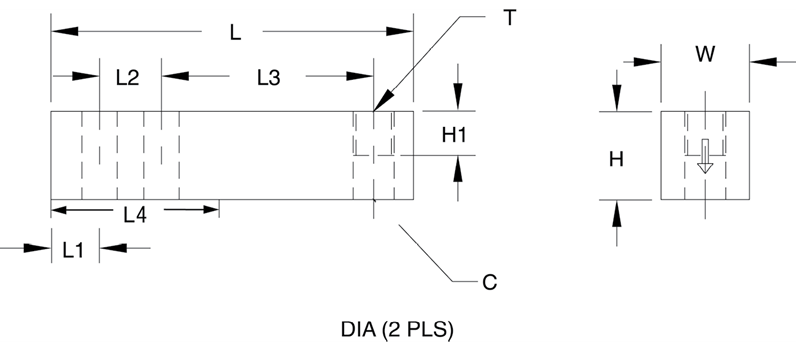

Rated Capacity C H H1 L L1 L2 L3 L4 T W
lb/in
1,000 to 4,000 0.53 1.25 0.62 5.12 0.62 1.00 3.00 2.25 1/2-20 UNF 1.25
5,000 to 10,000 0.78 1.50 0.75 6.75 0.75 1.50 3.75 3.12 3/4-16 UNF 1.50



Description

Full Scale Output:
3.0 mV/V

Output Resistance:
352 (± 3) ohm

Input Resistance:
350 (± 7) ohm

Material/Finish:
Alloy steel, nickel plated

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.025% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
1,000 megohm

Deflection at Capacity:
1,000 lb: 0.016 in
2,500 lb: 0.03 in
4,000 lb: 0.04 in
5,000 lb: 0.035 in
10,000 lb: 0.042 in

Cable Length:
20 ft

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited

Approvals:
cFMus
NTEP
