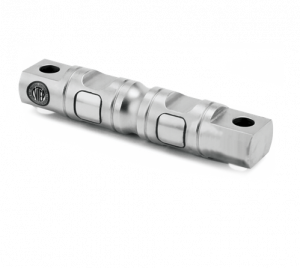

Designed for truck, track and process weighing. High accuracy, low profile, tolerance to non-axial loading and redundant seal. NTEP Certified capacities range from 5,000 to 250,000 lb. Complete with 30 ft of load cell cable.

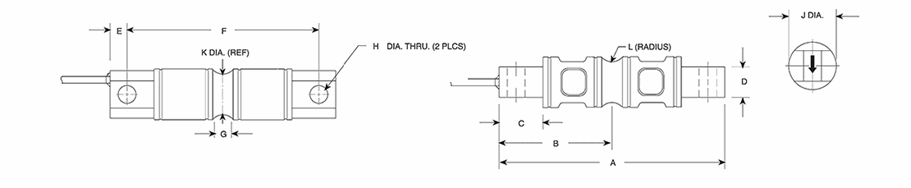

| Rated Capacity | A | B | C | D | E | F | G | H | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||||
| 5,000 to 10,000 | 8.12 | 4.06 | 1.44 | 1.12 | 0.62 | 6.87 | 0.62 | 0.65 | 1.70 | 1.48 | 0.50 |
| 20,000 | 8.12 | 4.06 | 1.44 | 1.12 | 0.62 | 6.87 | 0.84 | 0.65 | 1.95 | 1.48 | 0.50 |
| 30,000 to 75,000 | 10.25 | 5.12 | 1.88 | 2.37 | 0.88 | 8.50 | 1.00 | 1.06 | 3.00 | 2.73 | 1.00 |
| 100,000 | 11.25 | 5.62 | 1.88 | 2.50 | 0.88 | 9.50 | 1.00 | 1.06 | 3.50 | 3.24 | 1.50 |
| 150,000 | 11.25 | 5.62 | 1.88 | 2.80 | 0.88 | 9.50 | 1.25 | 1.06 | 3.90 | 3.64 | 1.50 |
| 200,000 to 250,000 | 16.10 | 8.05 | 3.05 | 4.60 | 1.55 | 13.00 | 1.30 | 1.55 | 5.375 | 5.17 | 2.00 |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: Safe Overload: |
Safe Sideload: 100% full scale Rated Excitation: Non-repeatability: Combined Error: Insulation Resistance: Deflection at Capacity: |
Cable Length: 30 ft Cable Diameter: Cable Color Code: Warranty: Approvals: |
