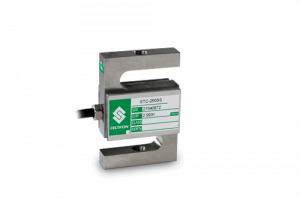

Industrial s-beam in a protective stainless steel construction. Ideal for tension applications. Capacities range from 250 lb to 20,000 lb. Provided with a standard 20 ft of load cell cable.

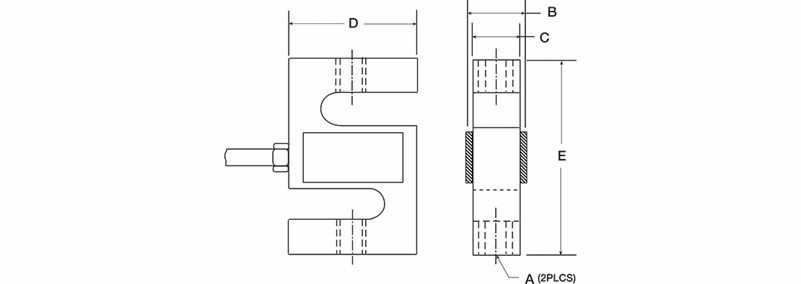

| Rated Capacity | A | B | C | D | E |
|---|---|---|---|---|---|
| lb/in | |||||
| 250 | 3/8-24 UNF | 0.75 | 0.50 | 2.00 | 3.00 |
| 500 to 1,500 | 1/2-20 UNF | 1.00 | 0.75 | 2.00 | 3.00 |
| 2,000 to 3,000 | 1/2-20 UNF | 1.25 | 1.00 | 2.00 | 3.00 |
| 5,000 | 3/4-16 UNF | 1.25 | 1.00 | 3.00 | 4.25 |
| 10,000 | 3/4-16 UNF | 1.25 | 1.00 | 3.50 | 4.25 |
| Full Scale Output: 3.0 mV/V nominal Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Environmentally sealed, IP67 Safe Overload: Rated Excitation: Nonlinearity: Hysteresis: Insulation Resistance: |
Cable Length: 20 ft Cable Diameter: Cable Color Code: Warranty: Approvals: |
