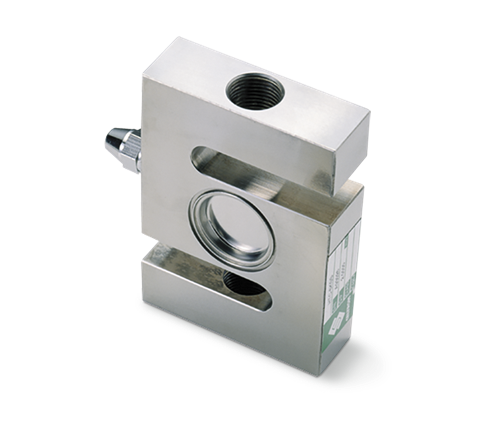

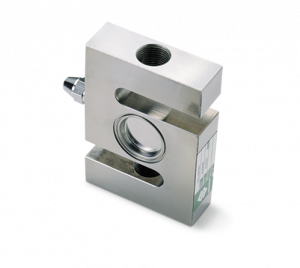

Features upgraded protection to the standard environmentally sealed s-beam. Ideal for dry, but dirty suspended tank, hopper and mechanical replacement applications. Provides a mid-range solution. Available in capacities ranging from 500 lb to 10,000 lb. Each unit includes 20 ft of standard load cell cable.

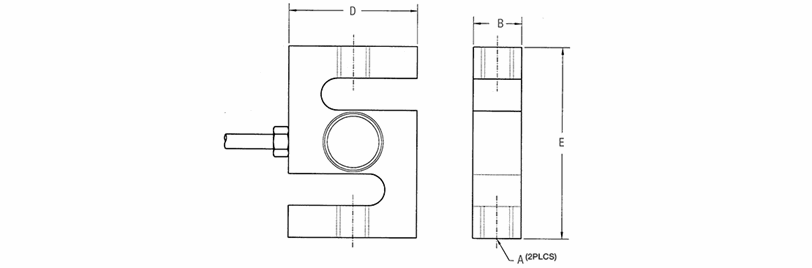

| Rated Capacity | A | B | D | E |
|---|---|---|---|---|
| lb/in | ||||
| 500 to 3,000 | 1/2-20 UNF | 1.00 | 2.00 | 2.97 |
| 5,000 to 10,000 | 3/4-16 UNF | 1.00 | 3.00 | 4.25 |
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Welded-seal, IP67 Safe Overload: Rated Excitation: Combined Error: Insulation Resistance: |
Cable Length: 20 ft Cable Diameter: Cable Color Code: Warranty: |
