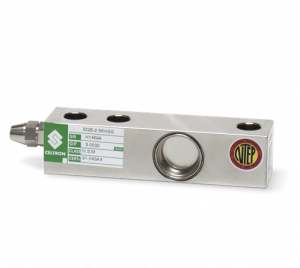

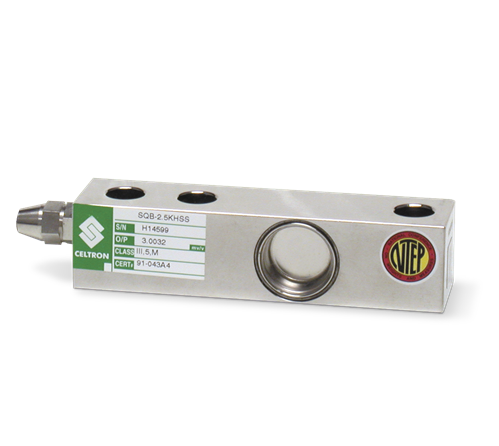

A stainless steel, welded-seal, single-ended beam load cell with exceptional performance and reliability. Suitable for hostile environment applications, such as food and chemical processing. Designed for single or multiple load cell installations and easy adaptation of mounting hardware. Capacities range from 1,000 lb to 10,000 lb. Complete with 20 ft of load cell cable.

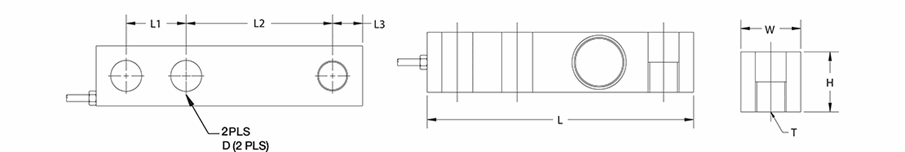

| Rated Capacity | L | L1 | L2 | L3 | W | H | D | T |
|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||
| 1,000 to 5,000 SE | 5.12 | 1.00 | 3.00 | 0.50 | 1.25 | 1.25 | 0.53 | 1/2-20 UNF |
| 5,000 LE to 10,000 | 6.75 | 1.50 | 3.75 | 0.75 | 1.50 | 1.50 | 0.78 | 3/4-16 UNF |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full Scale Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: |
Cable Diameter: 0.200 in Polyurethane jacket Cable Color Code: Warranty: Approvals: |
