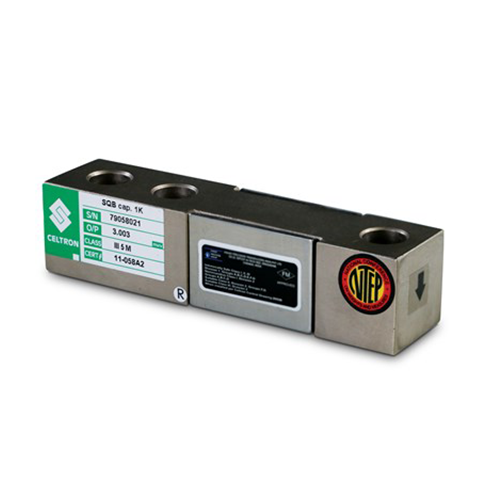

Single-ended beam designed for low-profile scales and platform, hopper and tank weighing applications. NTEP Certified cells in capacities from 1,000 lb to 10,000 lb. Non-NTEP Certified cells in 500 lb, 15,000 lb and 20,000 lb capacities. Complete with 20 ft of load cell cable.

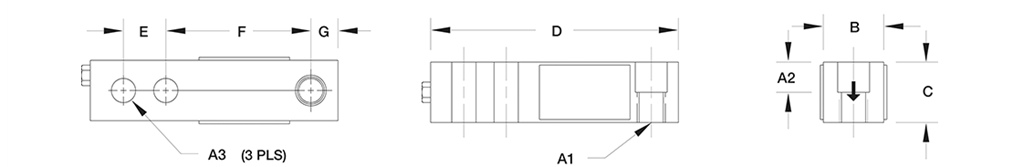

| Rated Capacity | A4 | A2 | A3 | A1 | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||||
| 500 | 0.53 dia | 0.50 | 0.53 | 1/2-20 UNF | 1.25 | 1.00 | 5.12 | 1.00 | 3.00 | 0.50 |
| 1,000 to 5,000 SE | 0.53 dia | 0.62 | 0.53 | 1/2-20 UNF | 1.25 | 1.25 | 5.12 | 1.00 | 3.00 | 0.50 |
| 5,000 LE to 10,000 | 0.78 dia | 0.75 | 0.78 | 3/4-16 UNF | 1.50 | 1.50 | 6.75 | 1.50 | 3.75 | 0.75 |
| 15,000 to 20,000 | 1.03 dia | 1.00 | 1.03 | 1-14 UNS | 2.00 | 2.00 | 8.88 | 2.00 | 4.88 | 1.00 |
| Full Scale Output: 3.0 mV/VOutput Resistance: 350 (± 3) ohm Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scaleSafe Sideload: 100% full scale Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: |
Cable Length: 20 ftCable Diameter: 0.200 in Polyurethane jacket Cable Color Code: Warranty: Approvals: |
