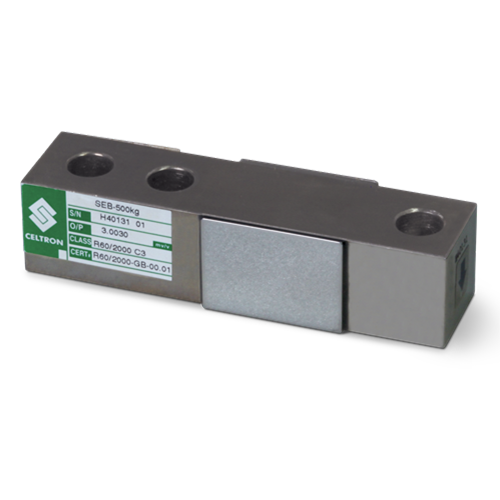

VPG Celtron SEB Alloy Steel Single-Ended Beam Load Cell

Designed for various scale and process weighing applications, this single-ended beam is manufactured from high-alloy steel and nickel plated to ensure an IP67 rating. OIML approved and has metric envelope capacities ranging from 500 kg to 2.5 t. Comes with 20 ft of standard load cell cable.

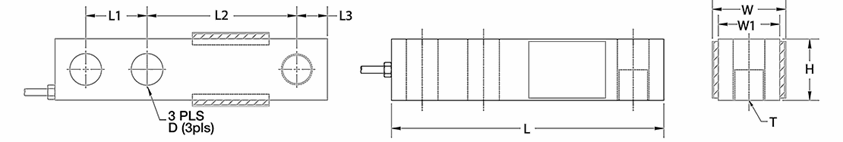

Rated Capacity	L	L1	L2	L3	W	W1	H	D	T
kg-t/in
500 to 2.5	5.12	1.00	3.00	0.50	1.50	1.25	1.25	0.53	M12 × 1.75

Description

Full Scale Output:
3.0 mV/VOutput Resistance:
350 (± 3) ohm

Input Resistance:
385 (± 5) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scaleSafe Sideload:
100% full scale

Rated Excitation:
5 to 10 VAC/DC (15 V maximum)

Combined Error:
0.025%

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft

Cable Diameter:
0.200 in
Polyurethane jacketCable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited

Approvals:
cFMus
OIML
