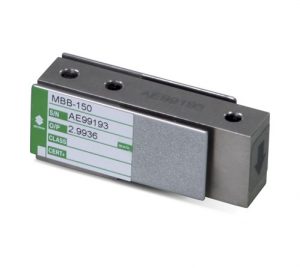

Ultra-small load cell designed for bench, platform, tank and conveyor weighing applications. Nickel plated and environmentally protected with a stainless steel side plate. Capacities range from 50 to 250 lb. Complete with 5 ft of load cell cable.

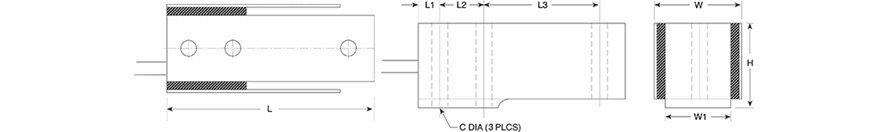

| Rated Capacity | C | W | W1 | H | L | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||
| 50 to 150 | 0.17 | 0.75 | 0.50 | 0.98 | 2.38 | 0.25 | 0.50 | 1.33 |
| 250 | 0.17 | 1.00 | 0.75 | 0.98 | 2.38 | 0.25 | 0.50 | 1.33 |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Environmentally sealed, IP65 Safe Overload: Rated Excitation: Nonlinearity: Hysteresis: Insulation Resistance: |
Cable Length: 5 ft Cable Color Code: Warranty: Approvals: |
