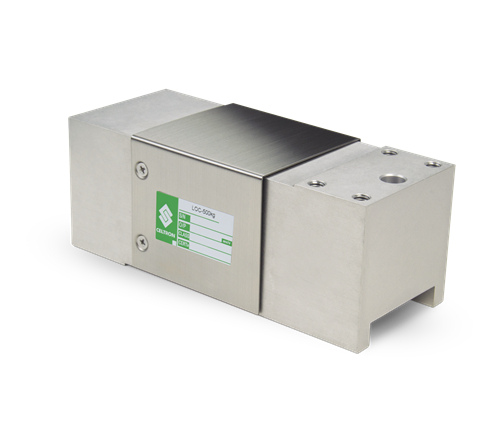

VPG Celtron LOC Heavy Capactiy Aluminum Single Point Load Cell

Low-profile, off-center loading load cell. Designed for direct mounting of a weighing platform and hanging scales. Long-term stability and durability are maintained. Capacities range from 100 to 500 kg. Complete with 3.1 m of load cell cable.

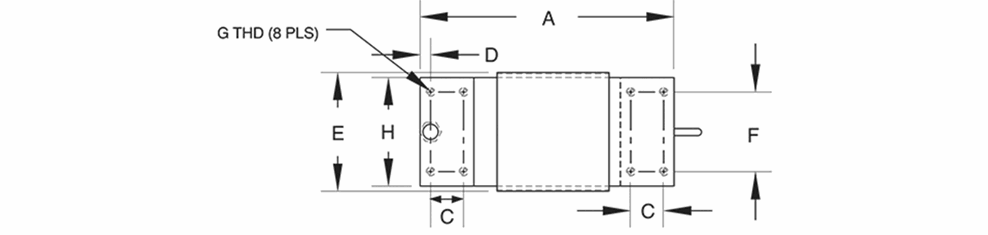

Rated Capacity	A	C	D	E	F	G	H
kg/mm
100 to 500	191.0	25.0	11.0	82.0	60.0	5/16-18 UNC × 20 DP	75.0

Description

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
410 (± 10) ohm

Material/Finish:
Aluminum

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP65

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.025% full scale

Non-Repeatability:
0.02%

Insulation Resistance:
5,000 megohm

Cable Length:
3 m

Cable Diameter:
0.200 in
PVC jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Max Platform Size:
24 × 24 in

Warranty:
One-year limited

Approvals:
cFMus
NTEP

Downloads

Load Cell Catalog Page
