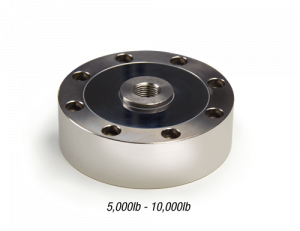

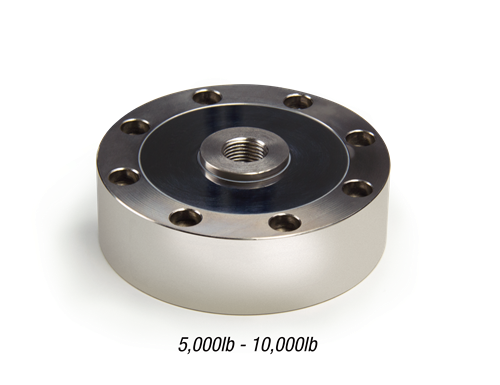

Environmentally protected, low-profile compression disk. 5,000 lb and 10,000 lb models can also be used in tension-loading applications. The shear web design provides excellent performance and a low-profile feature makes it ideal for applications where height is critical. Capacities range from 5,000 to 100,000 lb. Complete with 50 ft of load cell cable.
| Rated Capacity | T | R | D | D2 | H | H1 | H2 | T1 | T2 |
|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||
| 5,000* to 10,000* | 5/8-18 UNF | — | 4.12 | 3.50 | 1.37 | 0.12 | — | 0.28 | 0.406 × 0.283 DP |

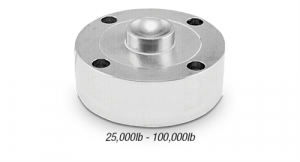

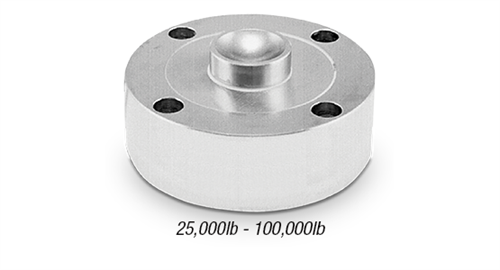

| 25,000 to 50,000 | — | 0.875 | 4.75 | 4.00 | 2.12 | 0.50 | 0.31 | 0.34 | 0.508 × 0.38 DP |
| 100,000 | — | 0.875 | 5.43 | 4.60 | 2.25 | 0.25 | 0.31 | 0.41 | 0.626 × 0.4 DP |
| *5,000lb and 10,000lb models can be used in compression and tension load applications Load Cup pn 33616 is required for compression applications on the 5,000lb and 10,000lb capacity load cells and is sold separately |
|||||||||
| Full Scale Output: 4.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Environmentally sealed, IP67 Safe Overload: Rated Excitation: Nonlinearity: Hysteresis: Insulation Resistance: |
Cable Length: 50 ft Cable Diameter: Cable Color Code: Warranty: Approvals: |
