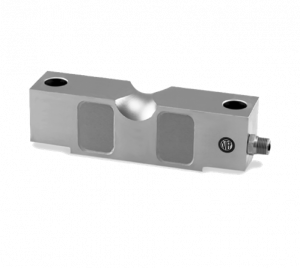

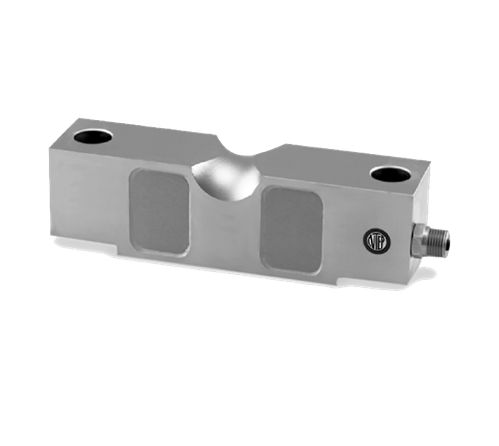

An alloy steel, nickel-plated, double-ended beam ideal for applications in truck, track, tank and hopper applications. Center-loaded design and compatible with MVS and TSA mounting assimblies. Available in capacities ranging from 20,000 lb to 125,000 lb. Provided with 35 ft of load cell cable.

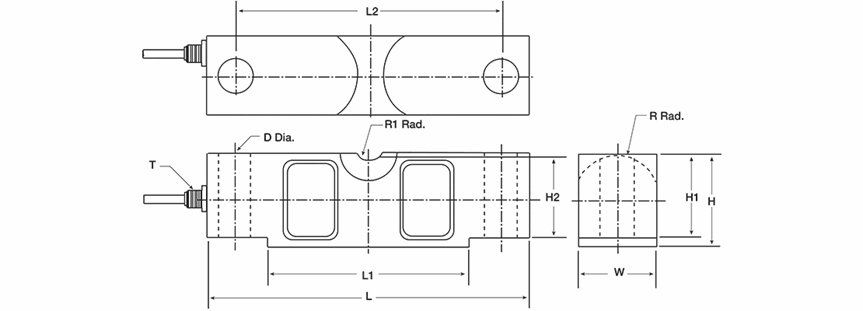

| Rated Capacity | L | L1 | L2 | W | H | H1 | H2 | D | R | R1 | T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||||
| 20,000 to 25,000 | 7.75 | 4.99 | 6.50 | 1.69 | 1.94 | 1.70 | 1.63 | 0.68 | 0.90 | 0.75 | 1/4-18 NPT |
| 40,000 | 10.25 | 6.39 | 8.50 | 1.94 | 2.44 | 2.10 | 2.00 | 0.81 | 1.12 | 1.00 | 1/4-18 NPT |
| 50,000 to 75,000 | 10.25 | 6.39 | 8.50 | 2.44 | 2.94 | 2.65 | 2.54 | 1.06 | 1.37 | 1.00 | 1/2-14 NPT |
| 125,000 | 15.25 | 8.99 | 12.75 | 2.90 | 3.86 | 2.43 | 3.30 | 1.62 | 1.80 | 1.50 | 1/2-14 NPT |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: |
Cable Diameter: 20,000 to 25,000 lb: 0.200 in 40,000 to 125,000 lb: 0.305 in Polyurethane jacket Cable Color Code: Warranty: Approvals: |
