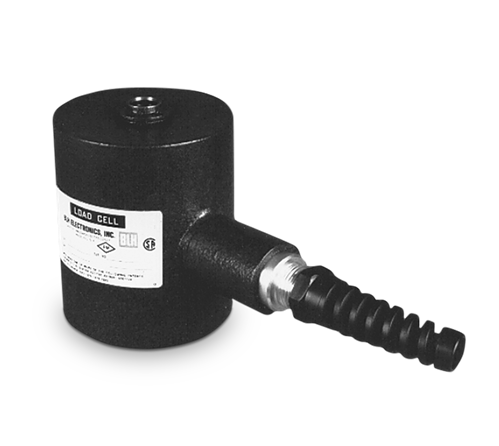

Features low deflection and trouble-free operation. Single-column, environmentally-protected design with high-alloy steel and epoxy-coated construction for optimal performance in harsh environments. Designed for high-capacity tension operations. Capacities of 20,000 lb and 50,000 lb. Complete with 35 ft of load cell cable.

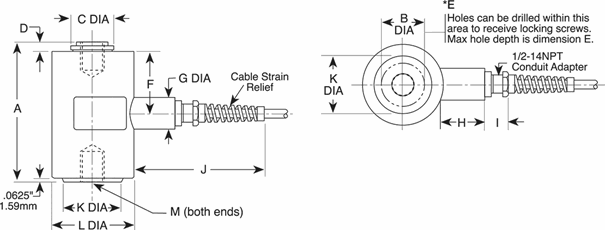

| Rated Capacity | A | B | C | D | E | F | G | H | I | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg/mm | |||||||||||||
| 500 to 3,000 | 4.56 | — | 1.06 | 0.25 | — | 2.25 | 1.38 | 1.81 | 1.00 | 5.81 | 1.25 | 3.50 | 1/2-20 UNF x 0.5 DP |
| 5,000 to 10,000 | 5.93 | 1.75 | 1.87 | 0.38 | 0.50 | 2.66 | 1.38 | 1.81 | 1.00 | 5.81 | 2.50 | 3.50 | 1-14 UNS x 1.25 DP |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: Safe Overload: |
Rated Excitation: 5 to 10 V AC/DC (20 V maximum) Nonlinearity: Hysteresis: Insulation Resistance: Deflection at Capacity: |
Cable Length: 35 ft Cable Color Code: Warranty: Approvals: |
