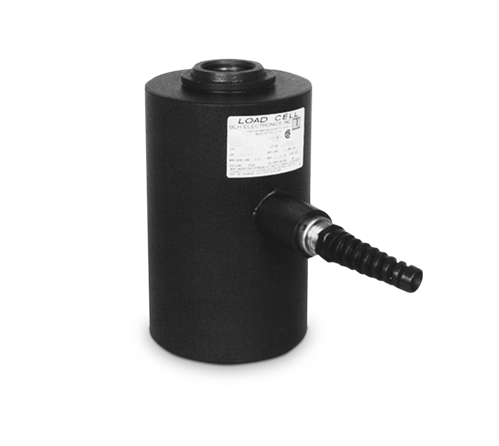

Single-column, environmentally protected design provides low deflection and trouble-free operation. High-alloy steel and epoxy coated construction yields trouble-free performance in harsh environments. Designed for high-capacity tension applications. Capacities of 20,000 and 50,000 lb. Complete with 35 ft of load cell cable.

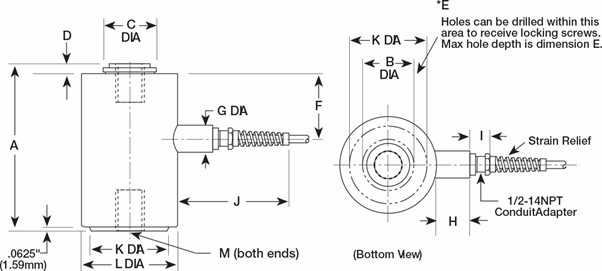

| Rated Capacity | A | B | C | D | E | F | G | H | I | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||||||
| 20,000 | 8.50 | 2.63 | 2.75 | 0.50 | 1.00 | 3.38 | 1.38 | 1.81 | 1.00 | 5.81 | 4.00 | 5.00 | 1 1/2-12 UNF × 2 DP |
| 50,000 | 11.44 | 3.75 | 4.00 | 0.63 | 1.00 | 5.00 | 1.38 | 1.81 | 1.00 | 5.81 | 5.75 | 6.50 | 2-12 UNF × 2.63 DP |
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Rated Excitation: Combined Error: Repeatability: Insulation Resistance: Deflection at Capacity: |
Cable Length: 35 ft Cable Color Code: Warranty: Approvals: |
