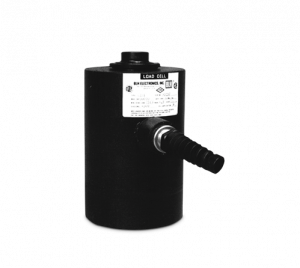

Single-column design with low deflection and trouble-free operation. High alloy steel and epoxy coated for use in harsh environments. Compact and rugged. NTEP Certified capacities range from 20,000 to 200,000 lb; non-NTEP Certified capacity of 300,000 lb. Complete with 10 or 35 ft of load cell cable.

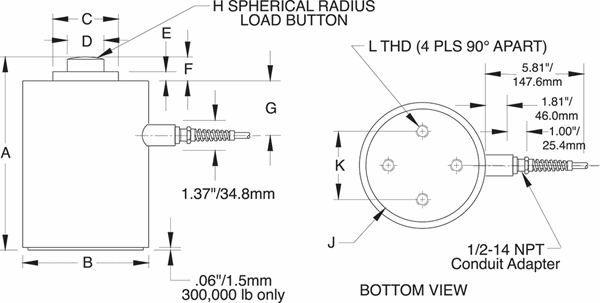

| Rated Capacity | A | B | C | D | E | F | G | H | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||||
| 20,000 to 50,000 | 7.50 | 4.50 | 2.25 | 1.25 | 0.50 | 0.75 | 2.50 | 6.00 | — | 2.38 | 3/8-24 UNF-2 × 3/8 DP |
| 100,000 | 9.13 | 6.00 | 3.13 | 1.75 | 0.63 | 1.06 | 2.50 | 12.00 | — | 4.00 | 1/2-20 UNF-2B × 3/4 DP |
| 200,000 | 11.63 | 8.00 | 4.50 | 2.50 | 0.63 | 1.06 | 3.50 | 12.00 | — | 5.50 | 5/8-18 UNF-2B × 1 DP |
| 300,000 | 14.00 | 10.00 | 5.00 | 3.00 | 0.75 | 1.31 | 4.31 | 15.00 | 8.00 | 5.50 | 3/4-16 UNF-2B × 1 1/4 DP |
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Rated Excitation: Nonlinearity: Hysteresis: Insulation Resistance: Deflection at Capacity: |
Cable Length: 10 ft 35 ft Cable Color Code: Warranty: Approvals: |
