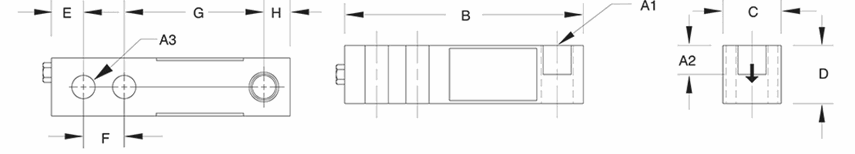

This threaded hole, single-ended beam is designed for low-profile scales and process applications. NTEP Certified cells in capacities ranging from 1,000 lb to 10,000 lb. Non-NTEP Certified cells in 250 lb, 500 lb and 20,000 lb capacities. Complete with 20 ft of load cell cable.
| Rated Capacity | A1 | A2 | A3 | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||||
| 250 to 5,000 SE | 1/2-20 UNF | 0.60 | 0.53 | 5.12 | 1.25 | 1.25 | 0.62 | 1.00 | 3.00 | 0.50 |
| 5,000 LE to 10,000 | 3/4-16 UNF | 0.75 | 0.78 | 6.75 | 1.50 | 1.50 | 0.75 | 1.50 | 3.75 | 0.75 |
| 20,000 | 1-14 UNF | 1.00 | 1.03 | 8.75 | 2.00 | 2.00 | 1.00 | 2.00 | 4.75 | 1.00 |
| Full Scale Output: 3.0 mV/V Bridge Resistance: Material/Finish: Temperature: Seal Type: Safe Overload: |
Safe Sideload: 100% full scale Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: |
Cable Length: 20 ft Cable Diameter: Cable Color Code: Warranty: Approvals: |
