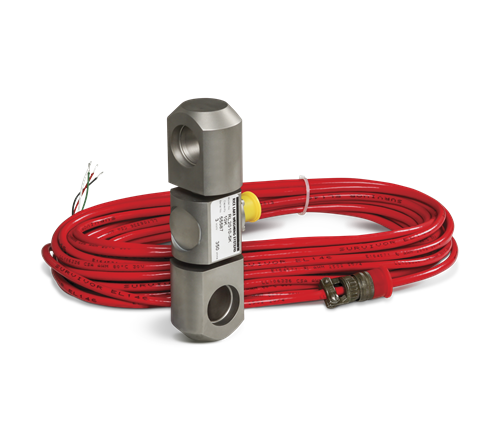

Ranges in capacities of 5,000 lb to 500,000 lb. Constructed of stainless steel. Ideal for unique tension applications.

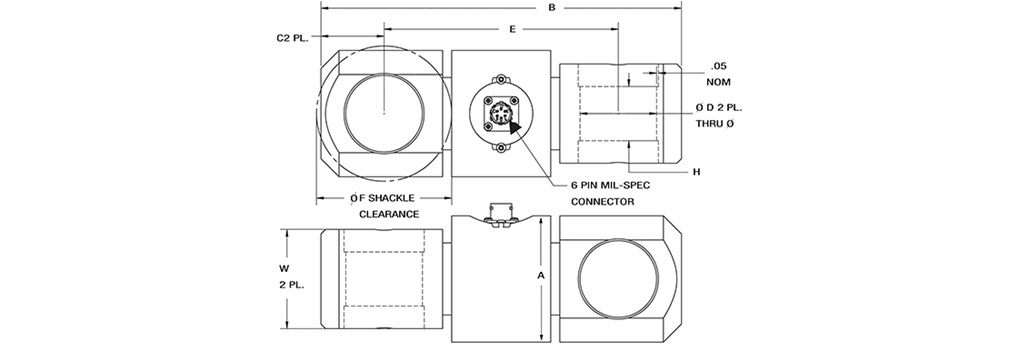

| Rated Capacity | A | B | C | ØD | E | ØF | W | H |
|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||
| 5,000 to 10,000 | 2.00 | 6.50 | 1.00 | 1.05 | 4.50 | 2.38 | 1.37 | 0.75 |
| 25,000 | 2.75 | 8.00 | 1.38 | 1.55 | 5.25 | 2.88 | 2.00 | 1.00 |
| 50,000 to 75,000 | 3.25 | 14.00 | 2.50 | 2.31 | 9.00 | 5.00 | 3.00 | 1.75 |
| 100,000 to 150,000 | 4.00 | 16.00 | 2.88 | 2.88 | 10.25 | 6.25 | 4.00 | 2.00 |
| 200,000 | 6.00 | 18.00 | 3.25 | 3.38 | 11.50 | 6.50 | 4.75 | 2.38 |
| 250,000 | 6.50 | 20.00 | 3.75 | 3.88 | 12.50 | 7.50 | 5.00 | 2.75 |
| 300,000 to 500,000 | 7.50 | 24.00 | 4.50 | 4.31 | 15.00 | 9.50 | 5.40 | 3.00 |
| Full Scale Output: 3.0 (± 0.1%) mV/V Bridge Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Rated Excitation: Linearity: Repeatability: Insulation Resistance: |
Cable Length: 40 ft Cable Diameter: Cable Color Code: Warranty: |
