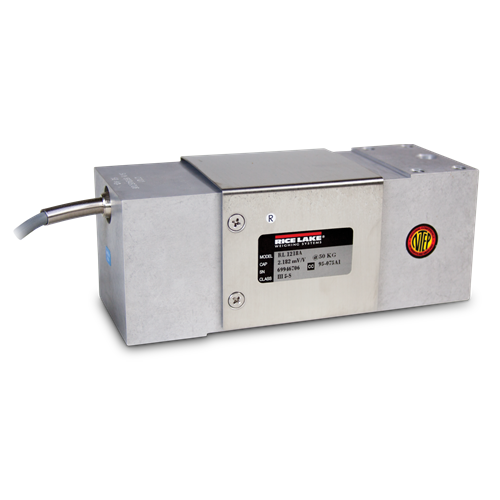

RL1218A Aluminum Single Point Load Cell

A high-capacity, off-center loading load cell. Weighs loads from 50 kg to 1,000 kg. Features potted cavities that offer excellent performance in damp environments.

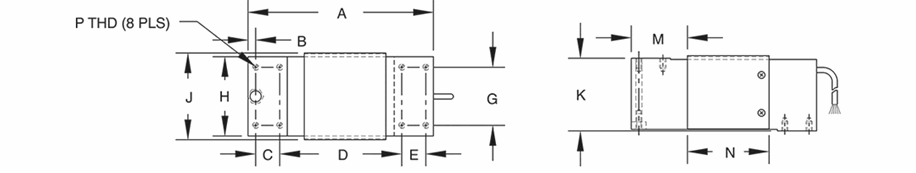

Rated Capacity	A	B	C	D	E	G	H	J	K	M	N	P
kg/mm
50 to 1,000	191.0	8.0	25.0	125.0	25.0	60.0	75.0	82.0	75.0	57.5	85.0	5/16-18 UNC × 15 DP

Description

Full Scale Output:
2.0 mV/V nominalOutput Resistance:
350 (± 3) ohm

Input Resistance:
415 (± 15) ohm

Material/Finish:
Anodized aluminum

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Insulation Resistance:
>5,000 megohm

Combined Error:
0.02% full scale

Deflection:
0.4 mm

Max Platform Size:
50 to 500 kg: 800 × 800 mm
635 to 1,000 kg: 600 × 600 mm

Cable Length:
10 ftCable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal
Blue +Sense
Yellow –Sense

Warranty:
Two-year limited

Approvals:
cFMus
NTEP 18-133
