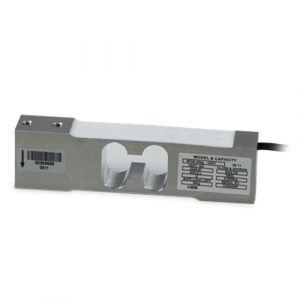

Low-profile, off-center load cell designed for use in retail, postal and platform scale applications. Manufactured from aluminum, and is movement compensated for guaranteed accuracy. Protected by a quality gauge coating compound that provides a barrier against high humidity environments. Capacities range from 3 kg to 100 kg, and comes standard with 10 ft of load cell cable.

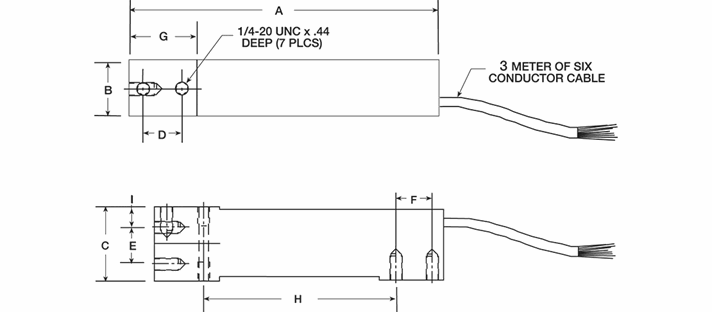

| Rated Capacity | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| kg/mm | |||||||||
| 3 to 100 | 150.3 | 25.4 | 39.9 | 19.1 | 19.1 | 19.1 | 33.8 | 99.6 | 11.4 |
| Full Scale Output: 2.0 mV/VOutput Resistance: 350 (± 3) ohm Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scaleRated Excitation: 5 to 10 VDC (15 V maximum) Combined Error: Insulation Resistance: Deflection at Capacity: Cable Length: |
Cable Diameter: 0.190 in PVC jacketCable Color Code: Blue +Excitation Black –Excitation White +Signal Red –Signal Green +Sense Grey –Sense Warranty: Approvals: |
