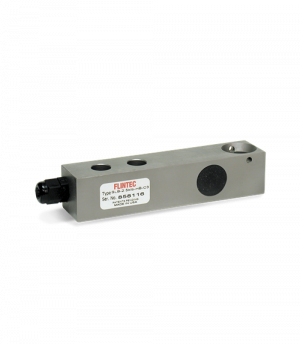

This stainless steel, single-ended beam has one of the highest NTEP Certified ratings in the industry. A new generation of potting makes this load cell suitable for tough industrial environments. Capacities range from 200 to 5,000 lb. Complete with 10ft of load cell cable.

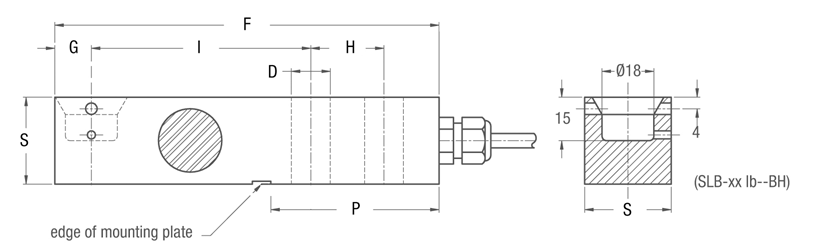

| Rated Capacity | D | F | G | H | I | P | S |
|---|---|---|---|---|---|---|---|
| lb/in | |||||||
| 200 to 5,000 | 0.51 | 5.37 | 0.50 | 1.00 | 3.00 | 2.42 | 1.19 |
| Full Scale Output: 2.0 mV/V mV/V/ohm calibration Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 200% full scale Safe Sideload: Rated Excitation: Insulation Resistance: Combined Error: Cable Length: |
Cable Diameter: 0.196 in Polyurethane jacket Cable Color Code: Warranty: Approvals: |
