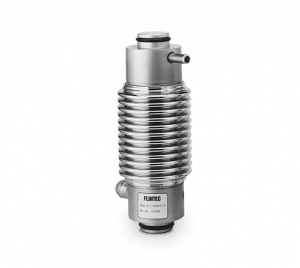

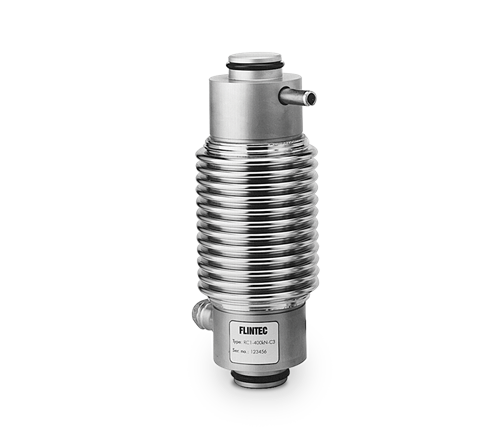

Offers stainless steel and real hermetic sealing, making these cells suitable for use in tough industrial environments. Capacities are 250 kN and 400 kN and 50,000 lb. Cable lengths vary form 35 ft to 60 ft for easy field replacement and load cell repairs.

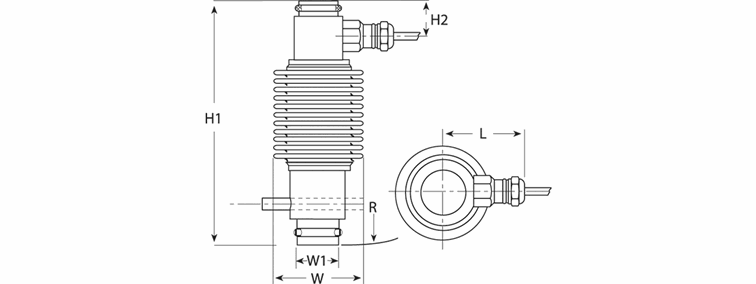

| Rated Capacity | H1 | H2 | L | R | W | W1 |
|---|---|---|---|---|---|---|
| kN/in | ||||||
| 250* | 7.56 | 1.22 | 2.44 | 10.98 | 2.83 | 1.46 |
| 400 | 8.86 | 1.34 | 2.72 | 14.02 | 3.35 | 1.46 |
| 50,000lb** | 7.56 | 1.22 | 2.44 | 10.98 | 2.83 | 1.46 |
| *For Mettler-Toledo digital to analog conversion: requires replacement of all system load cells, junction box, and instrumentation; consult factory. Kit on pg110 | ||||||
| **1,000 Ohm Bridge | ||||||
| Full Scale Output: 2.0 mV/V mV/V/ohm calibration Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Hermetically sealed, IP68 Safe Overload: Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: |
Cable Diameter: 0.196 in Polyurethane jacket Cable Color Code: Warranty: Approvals: |
