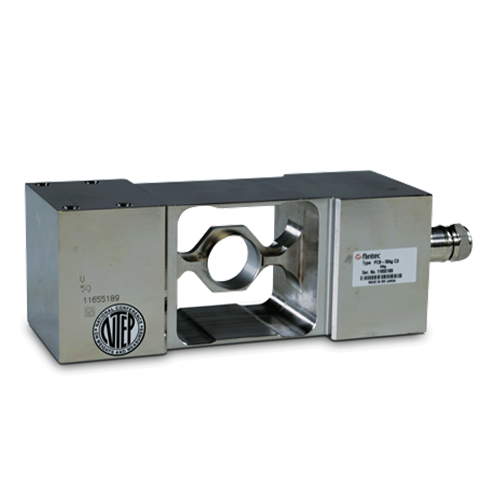

A unique “brick” style of load cell. Constructed of stainless steel and hermetically sealed, this unique design provides superior protection in applications where moisture and high humidity are problems. This model features both a welded gauge cavity area, and waterproof cable entry for long-lasting performance. With its interchangeable design, it provides the ability to upgrade applications. Available in capacities from 50 kg to 1,000 kg. Each unit includes 10 ft of load cell cable.

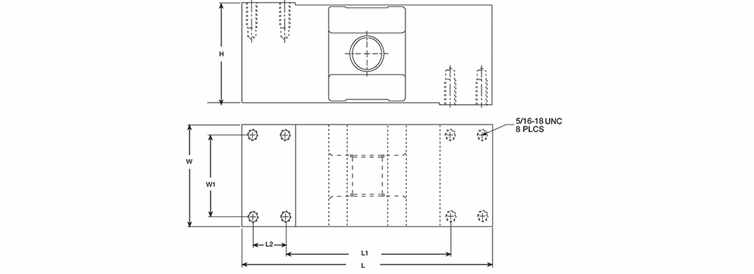

| Rated Capacity | L | L1 | L2 | W | W1 | H |
|---|---|---|---|---|---|---|
| kg/mm | ||||||
| 50 to 1,000 | 190.5 | 124.8 | 24.9 | 74.9 | 59.9 | 74.9 |
| Full Scale Output: 2.0 mV/VOutput Resistance: 960 (± 50) ohm Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 200% full scaleSafe Sideload: 100% full scale Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: Cable Length: |
Cable Diameter: 0.196 in Polyurethane jacketCable Color Code: Green +Excitation Black –Excitation White +Signal Red –Signal Yellow Shield Max Platform Size: Warranty: Approvals: |
