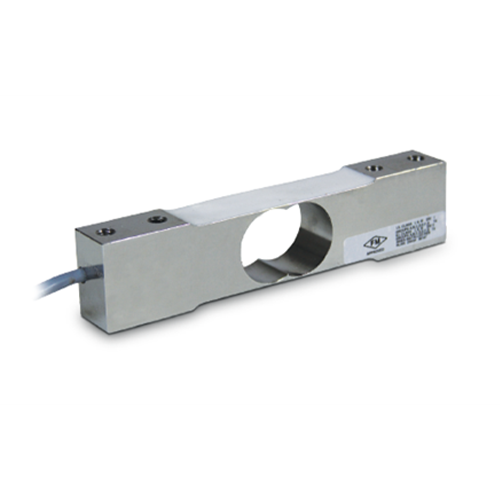

A stainless steel, single point load cell. Has an IP67 rating and is environmentally sealed, making it ideal for harsh environments, Capacities range from 7 kg to 150 kg. Complete with 10 ft of load cell cable.

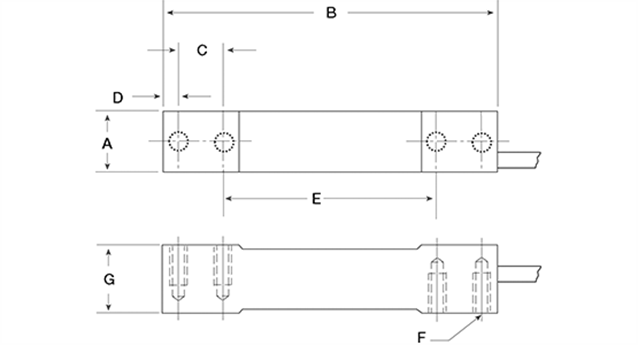

| Rated Capacity | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| kg/mm | |||||||
| 7 to 10 | 18.2 | 140.0 | 19.0 | 6.4 | 88.9 | 1/4-20 UNC | 30.0 |
| 30 to 60 | 24.5 | 140.0 | 19.0 | 6.4 | 88.9 | 1/4-20 UNC | 30.0 |
| 100 to 150 | 30.8 | 140.0 | 22.4 | 7.8 | 79.3 | 3/8-16 UNC | 30.0 |
| Full Scale Output: 2 mV/VOutput Resistance: 350 (± 10) ohm Input Resistance: Material Finish: Temperature Compensation: |
Seal Type: Environmentally Sealed, IP67Safe Overload: 150% full scale Rated Excitation: Insulation Resistance: Max Platform Size: Combined Error: |
Cable Length: 10 ftCable Diameter: 0.140 in Polyurethane jacket Color Code: Warranty: Approvals: |
