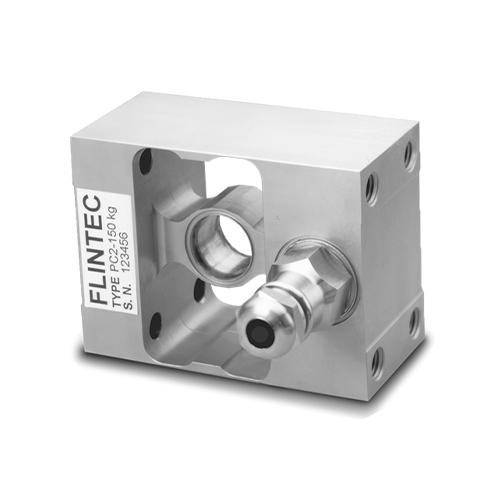

Flintec PC2 Stainless Steel Single Point Load Cell

This high-accuracy stainless steel, single-point load cell is an ideal replacement cell for hopper applications with damaged bellows. This cell also features complete hermetic sealing for use in the toughest environments. This product is offered at 150 kg and comes complete with 10 ft of load cell cable.

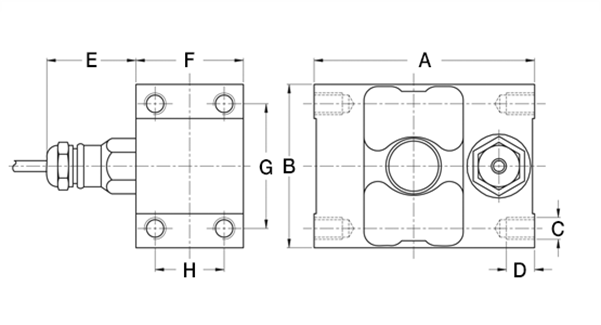

Rated Capacity	A	B	C	D	E	F	G	H
kg/mm
150	101.6	75.0	M10	13.0	41.0	49.5	57.2	31.8

Description

Full Scale Output:
2.0 mV/VOutput Resistance:
960 (± 50) ohm

Input Resistance:
1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP68

Safe Overload:
200% full scaleSafe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Insulation Resistance:
5,000 megohm

Combined Error:
0.02% full scale

Cable Length:
10 ft

Cable Diameter:
0.196 in
Polyurethane jacketCable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Blue +Sense
Brown -Sense
Yellow Shield

Warranty:
One-year limited

Approvals:
FM
